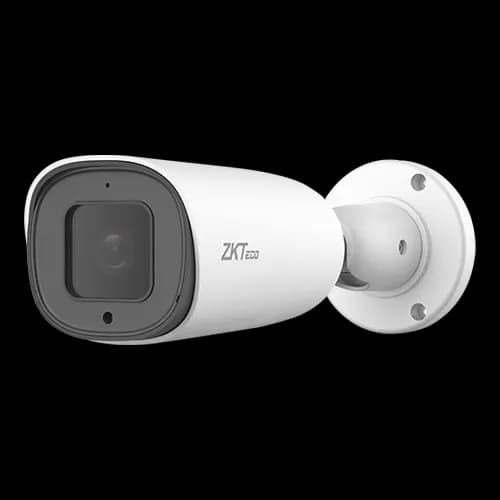

BL-852Q38A-LP

Qty in stockQty per box

Specifications

Model	BL-852Q38A-LP
Image Sensor	1/2.8” Sony STAVIS CMOS
Effective Pixels	1920 * 1080
Min. Illumination	Color: 0.001Lux@F1.7 (AGC ON)
Flash	512 Mb
IR LED No.	2 (Smart IR)
IR Distance	50m
S/N Ratio	> 52dB
Lens Type	Motorized
Mount Type	Board-in
Focal Length	3.35mm ~ 10.05mm
Aperture	F1.7 ~ F3.0
FOV	38° ~ 107°
Optical Zoom	3X
Compression	H.265+ / H.265 / H.264
Resolution	1080P (1920 * 1080) / 1.3MP (1280 * 960) / 720P (1280 * 720) Q720P (640 * 360) / CIF (352 * 288)
Bitrate Control	CBR / VBR
Bitrate	H.265+: 1536Kbps - 7Mbps H.265: 1536Kbps - 7Mbps H.264: 1792Kbps - 9Mbps
Multi-Streaming	Main Stream: 1080P@25fpsSub Stream: Q720P@25fpsN/A
Motion Detection	Support
Digital Zoom	Support
Audio Compression	G7.11u
Privacy Mask	5 areas
WDR	TWDR
Day / Night	Support
White Balance	Support
Defog	Support
Noise Reduction	3D DNR
Mirror / Flip	Support
Corridor Mode	Support
HLC	Support
BLC	N/A
ROI	4 areas
Anti-flicker	Support
Intelligent Video	Face Recognition / Line Crossing / Intrusion / Object Left / Lost / Counting / Video Shelter / Scene change / Audio Detection / Fire Detection/ VQD
Protocol	TCP/IP, UDP, HTTP, DHCP, RTSP, DDNS, NTP, PPPoE, UPnP, SMTP
Interoperability	ONVIF, SDK, API
Max. Online Users	5
Web Browser	IE / Firefox / Chrome / Safari
Management Software (VMS)	AntarVis 2.0
Operation System	Windows
Mobile Application	AntarView Pro
P2P Cloud Service	Support
Ethernet	1 RJ-45 port (10/100Mbps)
Audio I/O	1 in / 1 out
Alarm I/O	2 in / 1 out
RS485	Support
Reset Button	Support
Micro-SD Slot	64GB MicroSD card included
ANR	Support
USB	N/A
Power Supply	PoE (IEEE802.3af ), DC 12V±10%
Power Consumption	< 3W
Ingress Protection	IP 67
Dimensions (LWH)	2478576mm
Working Humidity	10% ~ 90%
Working Temperature	-30°C ~ +60 °C
Net Weight	0.50 kg
Gross Weight	0.64 kg
