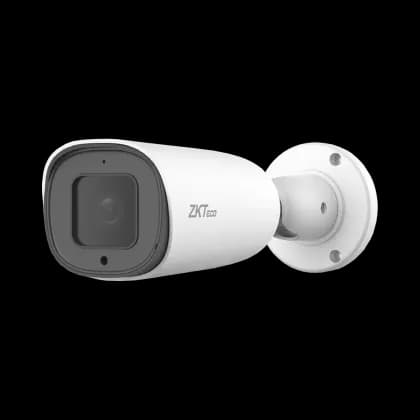

BL-858M48S-S8
Qty in stockQty per box
Specifications
| Device Type | Video Camera |
|---|---|
| Series | Mstar |
| Form Factor | Big Bullet |
| Image Sensor | 1/2.7" Sony STARVIS |
| Megapixels | 8 MP |
| Max. Resolution | 3840 × 2160 pixels |
| Minimum Illumination | Color: 0.01 lux |
| Lens Type | Motorized |
| Focal Length | 2.7 – 13.5 mm |
| Aperture | F1.6 – F3.3 |
| Field of View | 29° – 110° |
| Optical Zoom | 3× |
| Digital Zoom | Yes |
| IR Illumination | IR LEDs |
| Number of LEDs | 4 |
| IR Range | 80 m |
| WDR | DWDR |
| Noise Reduction | 2D/3D DNR |
| ROI (Region of Interest) | 4 zones |
| Day/Night Mode | Auto, Color, B/W |
| White Balance | Auto, Manual, Off |
| BLC (Backlight Compensation) | Yes |
| HLC (Highlight Compensation) | Yes |
| Mirror Mode | Yes |
| Corridor Mode | Yes |
| Motion Detection | Yes |
| Privacy Masking | 4 zones |
| Built-in Storage | 1 GB |
| RAM | 2 GB |
| Built-in Microphone | No |
| SD Card Slot | No |
| Video Codec | H.264, H.265 |
| Frame Rate | 25 fps |
| Bitrate | 4 Mbps – 8 Mbps |
| Audio Codec | G.711u |
| Smart Features | Face Detection |
| Network Ports | RJ-45 |
| Network Protocols | TCP, UDP, RTSP, PPPoE, SNMP, WebSocket |
| Standards | ONVIF, SDK, API |
| Max. Client Connections | 5 |
| Audio I/O | 1 input / 1 output |
| Alarm I/O | 2 inputs / 1 output |
| Power Supply | PoE, 12V |
| Power Consumption | 3W |
| SNR (Signal-to-Noise Ratio) | ≤ 52 dB |
| Software | CVAccess, CVSecurity, AntarVis |
| Mobile App | AntarView Pro |
| Housing Material | Metal |
| Protection Rating | IP67 |
| Humidity | ≤ 90% |
| Operating Temperature | –40°C to +60°C |
| Dimensions | 246 × 85 × 76 mm |
| Weight | 0.5 kg |
