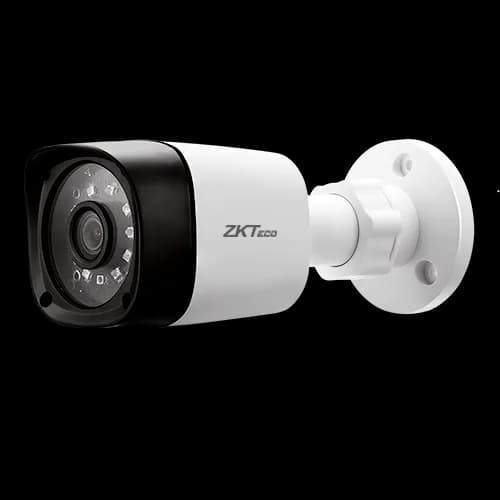

BS-32B11A-B1
Qty in stockQty per box
Specifications
| Image Sensor | 1/2.9" 2MP Sensor |
|---|---|
| Scanning System | Progressive |
| Minimum Illumination | 0.1 Lux @ F2.4 (Color), 0 Lux with IR on |
| Effective Pixels | 1920 × 1080 |
| S/N Ratio | More than 52 dB |
| IR Distance | 10 ~ 20 m |
| IR LED Count | 10 |
| Focal Length | 2.8 mm |
| Aperture | F2.4 |
| Field of View (FOV) | 92° |
| Video Output | AHD / TVI / CVI / CVBS |
| Resolution | 25/30 fps @ 1080P |
| OSD Menu | Supported |
| BLC | Not Available |
| WDR | DWDR |
| AGC | Supported |
| Day/Night Mode | Auto (ICR) / Manual |
| White Balance | Supported |
| Noise Reduction | 2D DNR |
| Working Temperature | -30°C ~ +60°C |
| Working Humidity | 10% ~ 90% |
| Power Supply | DC 12V ±10% |
| Power Consumption | < 3.2 W (IR Off) |
| Dimensions (L × W × H) | 165 × 61 × 61 mm |
| Net Weight | 0.15 kg |
| Gross Weight | 0.25 kg |
