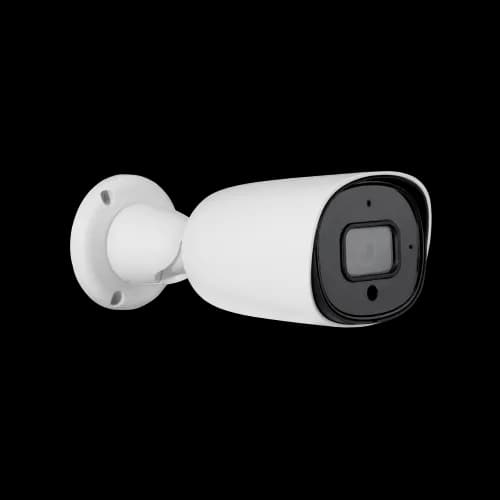

BS-852O22C-S5

Qty in stockQty per box

Specifications

Model	BS-852O22C-S5
Image Sensor	1/2.9” CMOS
Effective Pixels	1920 * 1080
Min. Illumination	Color: 0.5Lux@F2.0 (AGC ON)B/W: 0.001Lux@F2.0 (IR ON)
Flash / DDR	16Mb / 512Mb
IR LED No.	2
IR Distance	30m
S/N Ratio	≥50dB
Lens Type	Fixed
Mount Type	Board-in
Focal Length	3.6mm
Aperture	F2.0
FOV	90°
Optical Zoom	N/A
Compression	H.265 / H.264
Resolution	1080P (1920 × 1080) / 1.3M (1280 × 960) / 720P (1280 × 720)
Bitrate Control	CBR / VBR
Bitrate	H.265: 128Kbps - 6MbpsH.264: 128Kbps - 6Mbps
Multi-Streaming	Main Stream: 1080P@25fps / 960P@25fps / 720P@25fpsSub Stream: D1@25fps / VGA@25fps / CIF@25fpsThird Stream: N/A
Motion Detection	Support
Digital Zoom	Support
Audio Compression	G7.11u
Privacy Mask	4 areas
WDR	DWDR
Day / Night	Support
White Balance	Support
Defog	N/A
Noise Reduction	2D/3D DNR
Mirror / Flip	Support
Corridor Mode	Support
HLC	Support
BLC	Support
ROI	4 areas
Anti-flicker	N/A
Intelligent Video	Face Detection
Face Templates	N/A
Face Detected Per Frame	5
Detected Face Size	80x80 ~ 300x300 Pixels
Face Quality Filtering	Support
Detection Area	User-defined
Capture Response	≤200ms
Protocol	TCP/IP, UDP, HTTP, DHCP, RTSP, DDNS, NTP
Interoperability	ONVIF, GB28181
Max. Online Users	3
Web Browser	IE / Firefox / Chrome / Safari
Management Software (VMS)	AntarVis 2.0 / ZKBioSecurity IVS / ZKBioAccess IVS
Operation System	Windows
Mobile APP	AntarView Pro
P2P Cloud Service	Support
Ethernet	1 RJ-45 port (10/100Mbps)
Audio I/O	N/A
Alarm I/O	N/A
RS485	N/A
Reset Button	N/A
Micro-SD Slot	N/A
ANR	N/A
USB	N/A
Power Supply	PoE, DC 12V±10%
Power Consumption	<3.7W
Ingress Protection	IP67
Dimensions (LWH)	171 * 75 * 66 (mm)
Working Temperature	-30°C ~ 60°C
Working Humidity	0% ~ 90%
Net Weight	0.36kg
Gross Weight	0.49kg
