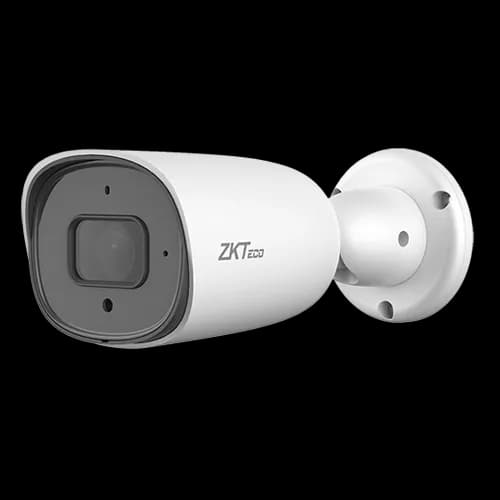

| Model | BS-858M22C-S8 |
|---|---|
| Image Sensor | 1/2.7” Sony CMOS |
| Effective Pixels | 3840 * 2160 |
| Min. Illumination | Color: 0.01Lux@F1.6 (AGC ON) B/W: 0.001Lux@F1.6 (AGC ON) |
| Flash / DDR | 1Gb / 2Gb |
| IR LED No. | 2 |
| IR Distance | 30m |
| S/N Ratio | > 52dB |
| Lens Type | Fixed |
| Mount Type | Board-in |
| Focal Length | 3.6mm |
| Aperture | F1.6 |
| FOV | 95° |
| Optical Zoom | N/A |
| Compression | H.265 / H.264 |
| Resolution | 8MP (3840 x 2160) / 5MP (2592 x 1944) / 4MP (2560 x 1440) / 1080P (1920 x1080) /D1 (720 x 576) / VGA (620 x 480) / CIF (352 x 288) |
| Bitrate Control | CBR / VBR |
| Bitrate | 4Mbps ~ 8Mbps |
| Multi-Streaming | Main Stream: 8MP@20fps / 5M@25fps / 4MP@25fps / 2MP@25fpsSub Stream: D1@25fps / VGA@25fps / CIF@25fpsThird Stream: N/A |
| Motion Detection | Support |
| Digital Zoom | Support |
| Audio Compression | G7.11u |
| Privacy Mask | 4 areas |
| WDR | DWDR |
| Day / Night | Support |
| White Balance | Support |
| Defog | N/A |
| Noise Reduction | 2D / 3D DNR |
| Mirror / Flip | Support |
| Corridor Mode | Support |
| HLC | Support |
| BLC | Support |
| ROI | 4 areas |
| Anti-flicker | N/A |
| Intelligent Video | Face Detection |
| Face Templates | N/A |
| Face Detected Per Frame | N/A |
| Detected Face Size | N/A |
| Face Quality Filtering | N/A |
| Detection Area | N/A |
| Capture Response | N/A |
