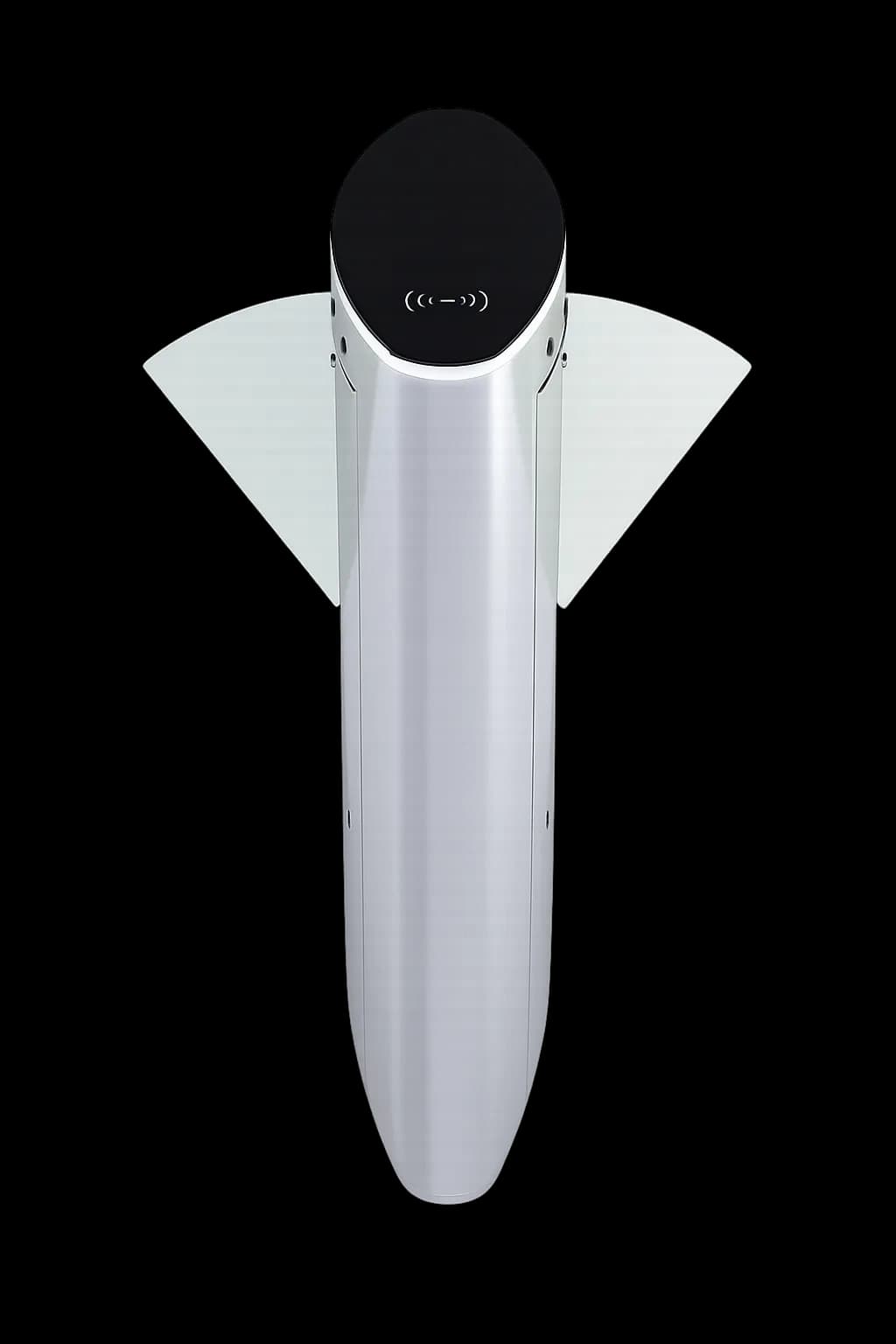

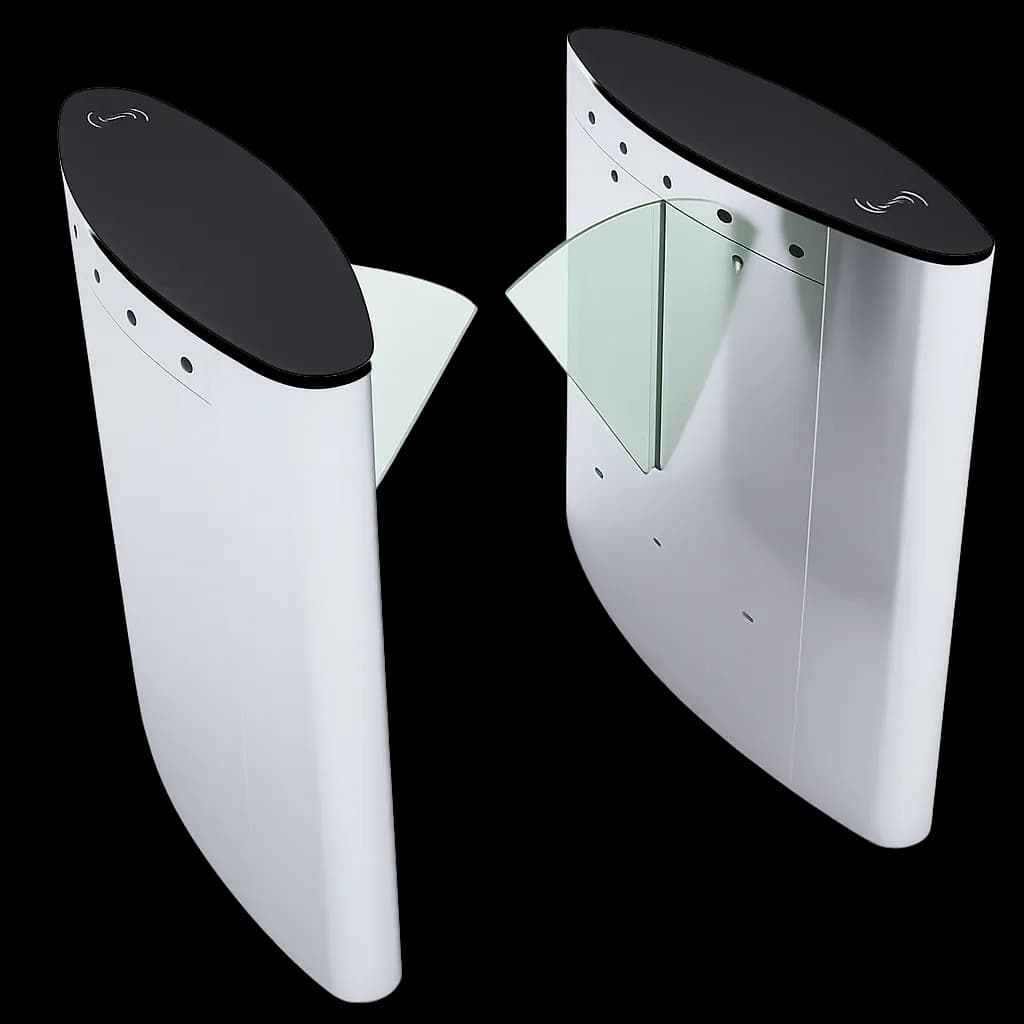

FBL3000 Series
Specifications
| Specification | Value |
|---|---|
| Power Requirements | AC110V / 220V, 50/60Hz |
| Power Consumption | Starting | 40W |
| Standby | 7W |
| Unlock | 43W |
| Working Temperature | -28°C ~ 60°C |
| Working Humidity | 5% ~ 80% |
| Working Environment | Indoor / Outdoor (if sheltered) |
| Speed of Throughput | RFID | Maximum 42 persons/minute |
| Fingerprint | Maximum 35 persons/minute |
| Face | Maximum 11 persons/minute |
| Vein | Maximum 23 persons/minute |
| Lane Width | 600 mm |
| Footprint | 1200 × 1200 mm |
| Dimensions (L × W × H) | 1200 × 300 × 1000 mm |
| Dimensions with Packaging | 1400 × 840 × 1100 mm |
| Net Weight | 135 kg |
| Weight with Packaging | 205 kg |
| LED Indicator | Yes |
| Cabinet Material | SUS304 Stainless Steel |
| Lid Material | Tempered Glass |
| Barrier Material | Tempered Glass |
| Barrier Movement | Retracting |
| Emergency Mode | Yes |
| Security Level | Medium |
| MCBF | 2 Million Cycles |
