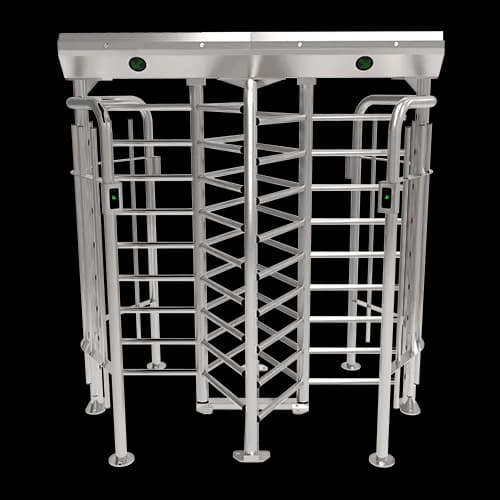

FHT2300D
Qty in stockQty per box
Specifications
| Specification | FHT2300D |
|---|---|
| Power Requirements | AC 110 V / 220 V, 50/60 Hz |
| Operating Temperature | -28°C to 60°C |
| Operating Humidity | 0% to 95% |
| Operating Environment | Indoor / Outdoor |
| Throughput Speed | RFID: Maximum 20 persons/minute Fingerprint: Maximum 15 persons/minute |
| Packing Dimensions | Turnstile: 2120 × 590 × 440 mm Cabinet: 1670 × 1510 × 2180 mm |
| Net Weight | Turnstile: 161.5 kg Cabinet: 271.5 kg |
| Lane Width | 580 mm |
| Footprint (L × W) | 2018 × 1397 mm |
| Dimensions (L × W × H) | 2018 × 1397 × 2220 mm |
| LED Indicator | Supported |
| Cabinet Material | SUS304 Stainless Steel |
| Barrier Material | SUS304 Stainless Steel (Optional: SUS316) |
| Barrier Movement | Rotating |
| Emergency Mode | Supported |
| Security Level | High |
| MCBF | 1 million cycles |
| Ingress Protection | IP54 |
| Warranty | 1 year |
