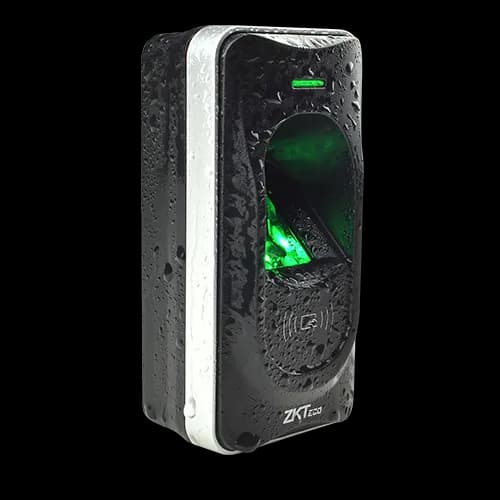

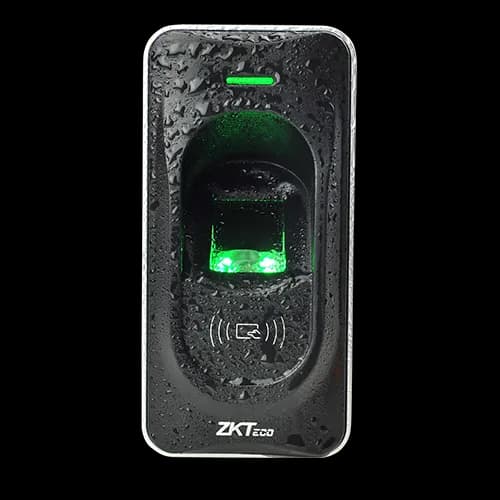

FR1200 ID
Specifications
| Model | FR1200 PNG |
|---|---|
| Physical Keypad | NA |
| Fingerprint Sensor | ZK Optical Sensor |
| RFID Module | ID Standard |
| Authentication Method | Fingerprint / Card |
| Card Type | ID Card @ 125 kHz |
| Biometric Verification Speed | < 0.3s @ Fingerprint |
| Touchless Biometric Recognition Distance | < 5 cm @ Card |
| False Acceptance Rate (FAR) | FAR ≤ 0.0001% |
| False Rejection Rate (FRR) | FRR ≤ 0.01% |
| Biometric Algorithm | ZKFingerprint V10.0 (Default) / V13.0 |
| Communication | RS485: ZKTeco RS485 ×1 / OSDP (Ver 2.1.7) |
| Visual Indicator | LED — Green: Standby / Verification Successful; Red: Verification Failed |
| Audio Indicator | Beeper |
| Operating Environment | Indoor / Outdoor / Semi-Enclosed Area |
| Power Supply | 9VDC to 24VDC |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 10% to 90% RH (Non-condensing) |
| Dimensions | 102 × 50 × 38 mm (L × W × H) |
| Gross Weight | 0.22 kg |
| Net Weight | 0.19 kg |
| Installation | Wall Mount and Mullion Mount |
| Housing Material | ABS Plastic |
| Ingress Protection Rating | IP65 |
| Certifications | ISO14001, ISO9001, CE, FCC, RoHS |
