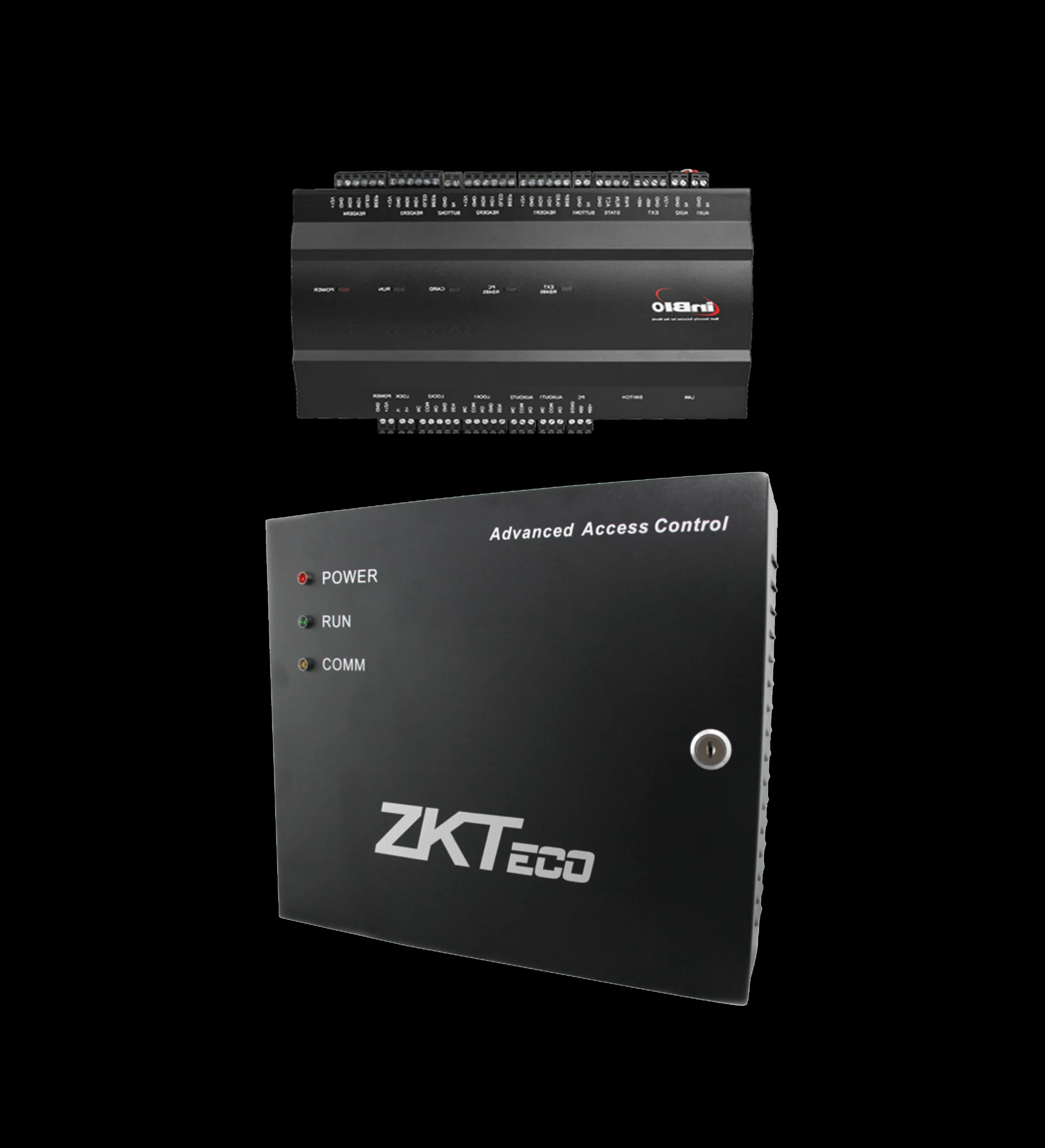

inBio160 Package B
Specifications
| Number of Doors Controlled | 1 door |
|---|---|
| Number of Supported Readers | 4 |
| 2 RS-485 readers | |
| 2 Wiegand 26-bit readers | |
| Supported Reader Types: | |
| 26-bit Wiegand | |
| RS-485 FR Series Readers | |
| Number of Inputs | 3 |
| 1 Exit Button (Device Status) | |
| 1 Door Sensor | |
| 1 Auxiliary (AUX) | |
| Number of Outputs | 2 |
| 1 Form C relay for lock | |
| 1 Form C relay for auxiliary output | |
| Capacity | |
| Cardholder Capacity | 600,000 |
| Fingerprint Capacity | 20,000 |
| Event Log Capacity | 100,000 |
| Hardware & Communication | |
| CPU | 32-bit, 1.2GHz |
| RAM | 128 MB |
| Flash Memory | 256 MB |
| Communication | TCP/IP, RS-485, optional WiFi |
| Power & Environment | |
| Power Supply | 9.6V – 14.4V DC |
| Operating Temperature | 0–45 °C |
| Operating Humidity | 20% – 80% |
| Dimensions & Weight | |
| Package Dimensions | 350 mm (L) × 90 mm (H) × 300 mm (W) |
| Package Weight | 3.6 kg |
