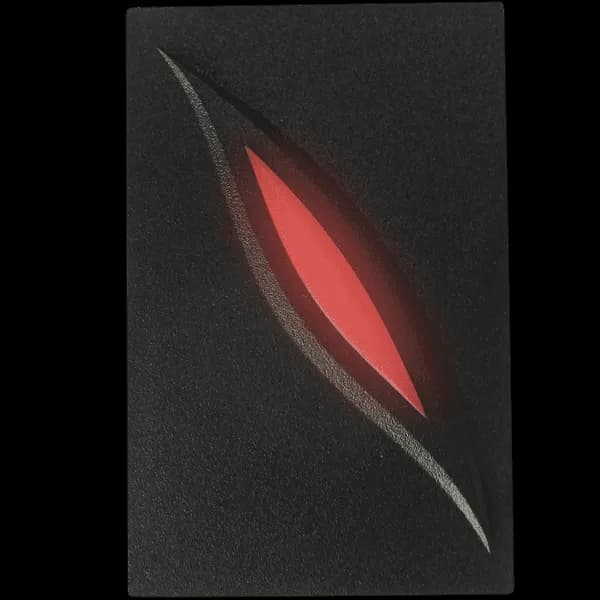

KR100M
Specifications
| Specification | Description |
|---|---|
| Model | KR100M |
| Read Range | Up to 10 cm |
| Reading Time (Card) | ≤300 ms |
| Power Supply | 6–14 V DC / Max. 70 mA |
| Input Ports | 2 (External LED Control, External Buzzer Control) |
| Beeper | Yes |
| LED Indicator | 2-color LED indicators (Red and Green) |
| Output Format | 26-bit Wiegand (Default), 34-bit Wiegand (Default) |
| Operating Temperature | -20°C to +65°C |
| Operating Humidity | 10% to 90% relative humidity, non-condensing |
| Color | Black |
| Material | ABS + PC with Texture |
| Dimensions | 116 × 75 × 17.3 mm (W × H × T) |
| Weight | 120 g |
| Protection Grade | IP65 |
