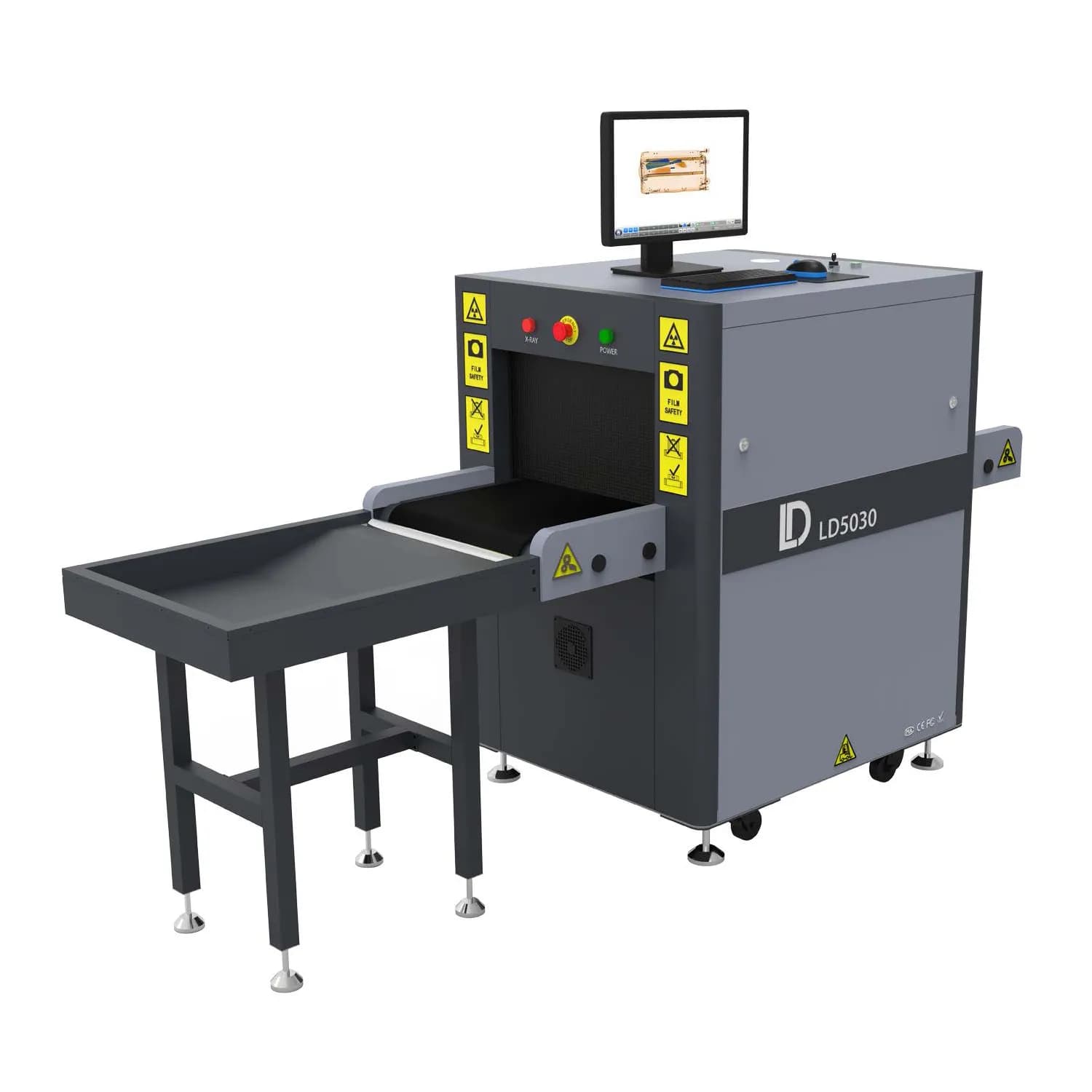

LD5030
Specifications
| Steel Penetration | 8 mm |
|---|---|
| Wire Resolution | 32 AWG |
| X-ray Generator Cooling | Sealed oil cooling / 100% duty cycle |
| Anode Voltage | 80 kV (rated) |
| Tube Current | 0.8 mA |
| Operating Temperature | 0°C to +40°C |
| Storage Temperature | -20°C to +60°C |
| Relative Humidity | 5% – 95% (non-condensing) |
| Unit Dimensions (L × W × H) | 1677 × 1198 × 787 mm |
| Tunnel Dimensions (W × H) | 507 × 304 mm |
| Package Size (L × W × H) | 1900 × 990 × 1485 mm |
| Package Weight | 410 kg |
| Conveyor Height | 755 mm |
| Conveyor Speed | 0.20 m/sec |
| Conveyor Load Capacity | 150 kg (evenly distributed) |
| Power Supply Options: | |
| 230 VAC ±10% / 50–60 Hz (EU Standard) | |
| 110 VAC ±10% / 50–60 Hz (US Standard) |
