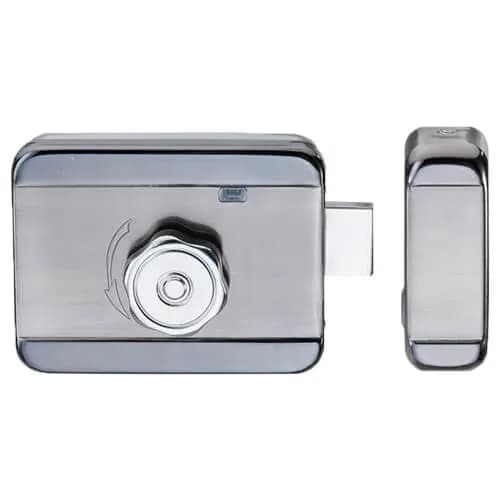

LL-03
Specifications
| Model | LL-01LL-02LL-03 |
|---|---|
| Power Supply | LL-01: DC 12VLL-02: DC 12V to 18V (please select a voltage jumper of 18V, otherwise the circuit board may be damaged)LL-03: DC 12V |
| Operating Current | LL-01: 2.5A ±20%LL-02: Stand-by: < 25mA Working: 450mA ±5%LL-03: Stand-by: < 25mA Working: 450mA ±5% |
| Access Control Interface | LL-01: 2 white wire; regardless + or -LL-02: V+: positive electrode for power GND: negative electrode for power L-: negative electrode for unlock trigger L+: positive electrode for unlock triggerLL-03: V+: positive electrode for power GND: negative electrode for power L-: negative electrode for unlock trigger L+: positive electrode for unlock trigger ARM+: alarm |
| Electrical Impulse | OFF: lockWhen the power is off, it will lock the door. Users in the locked area can unlock the door, then the lock will stay unlocked. |
| Door Sensor | LL-01: N/ALL-02: Built-inLL-03: Built-in |
| RFID | LL-01: N/ALL-02: N/ALL-03: 125kHz EM Card |
| Operating Temperature | -20°C to 60°C |
| MCBF | 500,000 times |
| Dimension | LL-01: 129.8 * 105.8 * 39.2 (mm) (L*W*H)LL-02: 128 * 96 * 43(mm) (L*W*H)LL-03: 128 * 96 * 43 (mm) (L*W*H) |
| Gross Weight | LL-01: 1.46kgLL-02: 1.5kgLL-03: 1.6kg |
| Package List | LL-01: Lock: 1 Iron key: 3LL-02: Lock: 1 Iron key: 3LL-03: Lock: 1 Iron key: 3 Digital remote control: 1(add or delete users) EM Card:1 |
