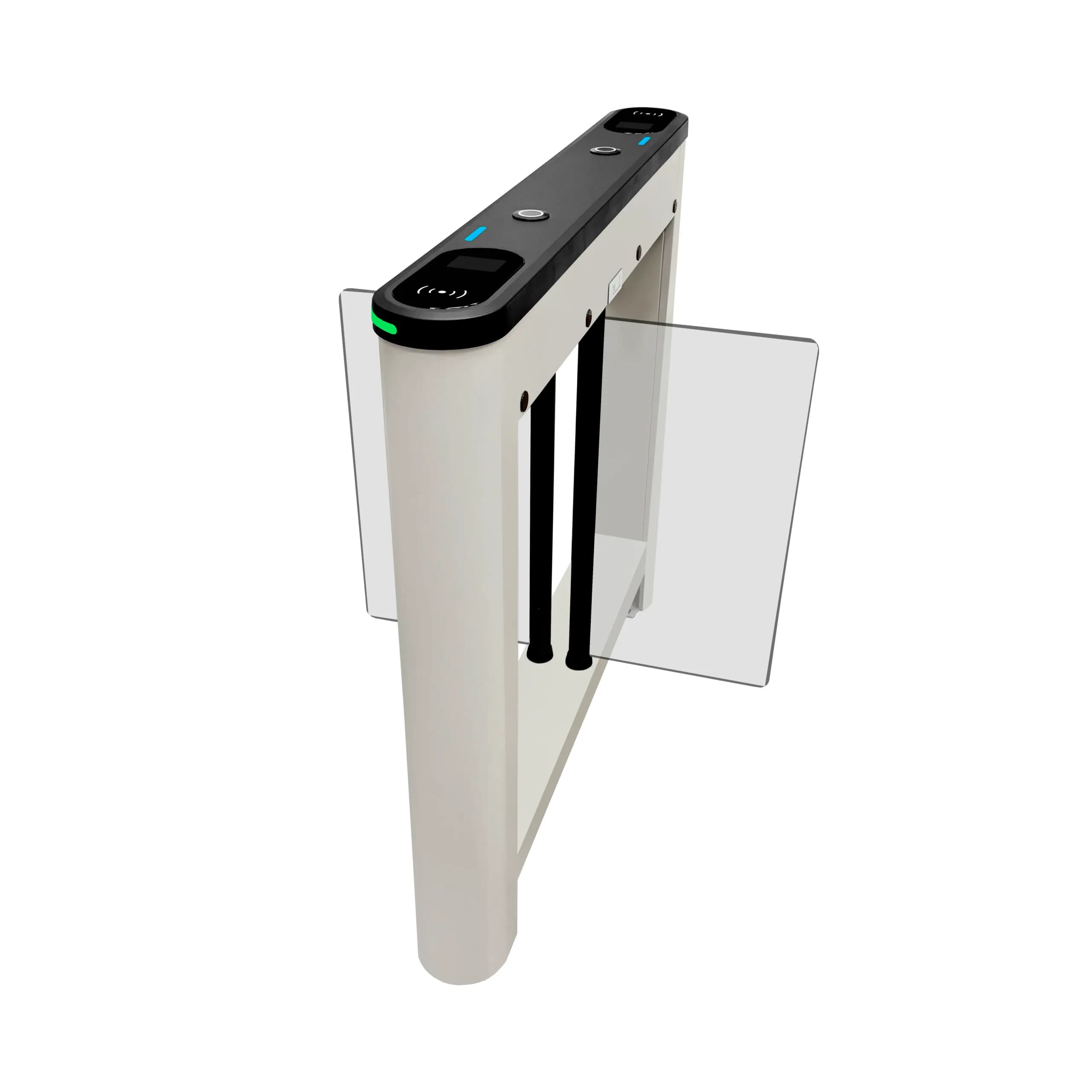

| Model Name | Saturn-S1000Saturn-S1200 |
|---|
| Audio Indicator | Internal speaker |
|---|
| Visual Indicator | Top LED indicator: Blue = Door closed / stand byGreen = Door openingRed = Door closing / alarm Slide LED indicator: Green = Lane availableRed = Lane unavailable |
|---|
| Display | NA |
|---|

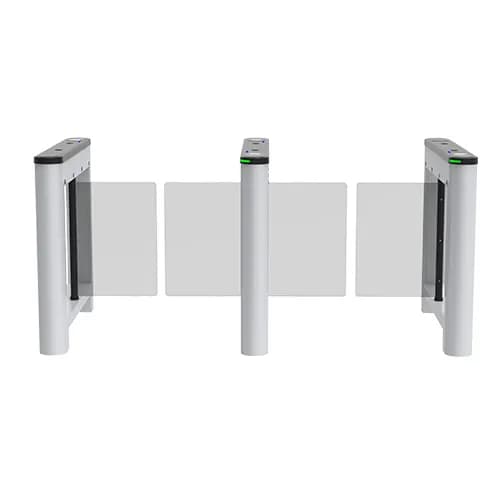

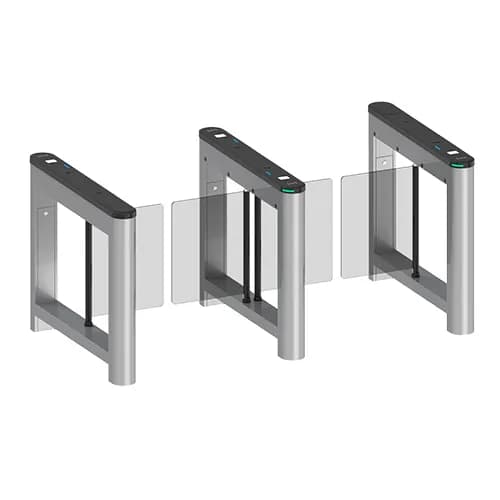

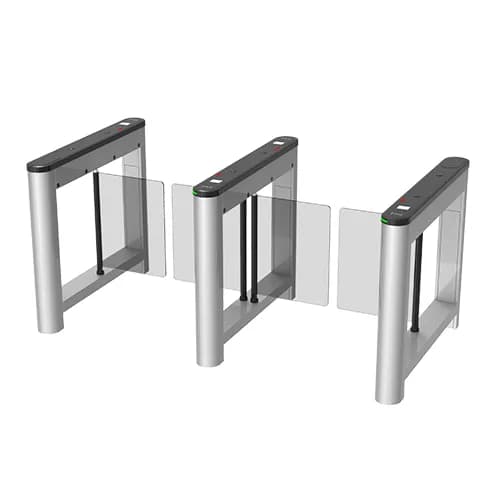

| Lane Type | Saturn-S1000: Single laneSaturn-S1200: Dual Swing (for additional lane) |
|---|
| Lane Width | 650mm (Standard)900mm (Optional) |
|---|
| Barrier Movement Type | Swing |
|---|
| Motor | DC brushless motor |
|---|
| Movement Speed | Average 1s per movement (Adjustable open/close timing) |
|---|
| Movement Accuracy | NA |
|---|
| Clutch | NA |
|---|
| Lid Material | Polycarbonate+2.5D tempered glass |
|---|
| Lid Options Authentication Methods | Streamlined under mount options: QR Code / RFIDSurface mount option: Facial Authentication |
|---|
| Chassis Material | Cold-rolled SPCC Steel (GB700) / Polycarbonate (Side Lid) |
|---|

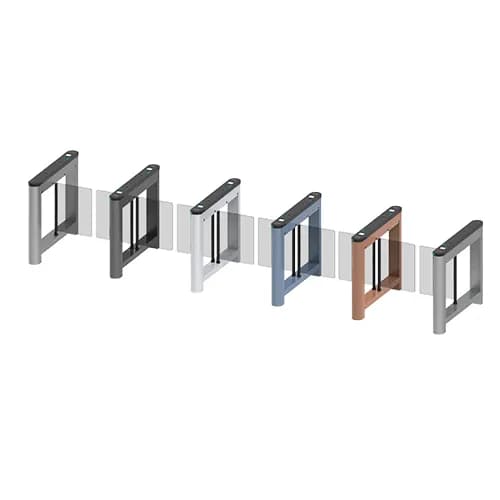

| Chassis Colour | Pearl White(PWH), Space Gray(SGY), Carbon Black(CBK), Bay Blue(BBLE), Mist Brown(MBW) |
|---|
| Barrier Material | Clear acrylic (635*300mm)(standard) / Tempered glass (635*425mm)(optional) |
|---|
| IR Sensors | 4 pairs |
|---|
| Motherboard Function | System configuration, access control |
|---|
| Motherboard Communication | Fire alarm port (relay)*1, RS485 port*1 |
|---|
| Controller | Not equipped, allowing optional from C3 / InBio Series series or customization |
|---|

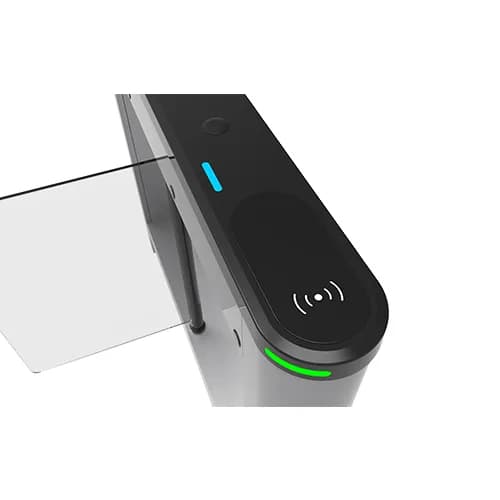

| Credential Options | Under mount RFID reader: (support model: Pro ID Series, KR Series)Under mount ngerprint reader: FR1200 / FR1500S |
|---|
| Flow Rate | Facial Authentication: 15 passengers per minuteQR Code: 30 passengers per minute RFID: 35 passengers per minute |
|---|
| Accessibility | Adult, Children (with care), Disability (with care) |
|---|
| Power Supply | 110V / 220V ±10% AC @50Hz/60Hz |
|---|
| Power Rating | 10VA(Standby) 40VA(Operation) |
|---|
| Fire Signal | Input for voltage free contact |
|---|
| Noise Level | Less than 60dB |
|---|
| MTTR | Less than 60 minutes |
|---|
| MCBF | 3 million |
|---|
| Weight | Saturn-S1000: 50kgSaturn-S1200: 30kg |
|---|
| Dimension (L*W*H) | 1200 * 150 * 1020 mm |
|---|
| Dimensions with Packing ( L*W*H ) | Saturn-S1000: Carton (standard): 1265*220*1070 mm (2 boxes)Wooden box (optional): 1300*480*1224mm (1 box)Saturn-S1200: Carton (standard): 1265*220*1070mm (1 box)Wooden box (optional): 1300*260*1224mm (1 box) |
|---|
| Operating Temperature | -30 °C to 70 °C |
|---|
| Operating Humidity | 5% to 90% RH (Non-condensing) |
|---|
| Certifications | CE, FCC |
|---|
| Ingress Protection Rating | IPX4 |
|---|
| Supported Software | ZKBio CVAccess / ZKBio CVSecurity (Depends on equipped access controller) |
|---|
| Safety Features | Voltage free contact input for fire alarm fail stateautomatic swing barrier open during power off |
|---|
| Security Features | Anti-tailgating, anti-pinch |
|---|
| Product Delivery | Pre-assembled |
|---|
| Application Environment | Indoor / outdoor (if sheltered) |
|---|
| Site Preparation | Flat & level finished floor (base plate in options for unfinished floor) |
|---|
| Security Level | Low |
|---|
| Emergency Mode | Support (swing barrier open automatically) |
|---|
| Packing Material | Carton(standard) / Wooden(optional) |
|---|
