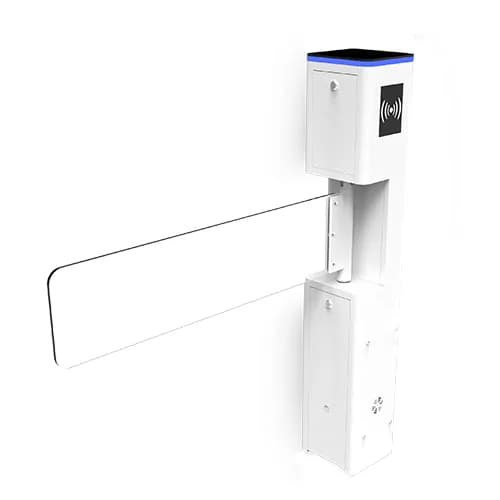

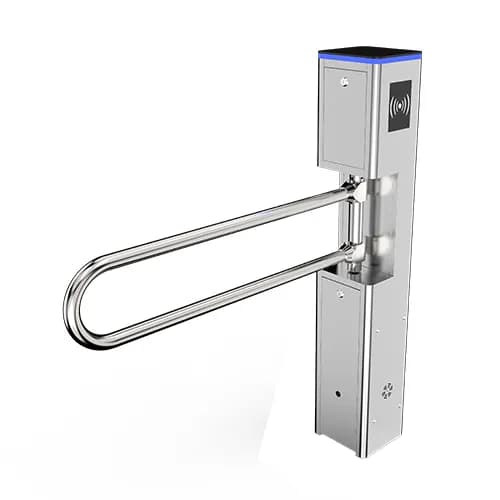

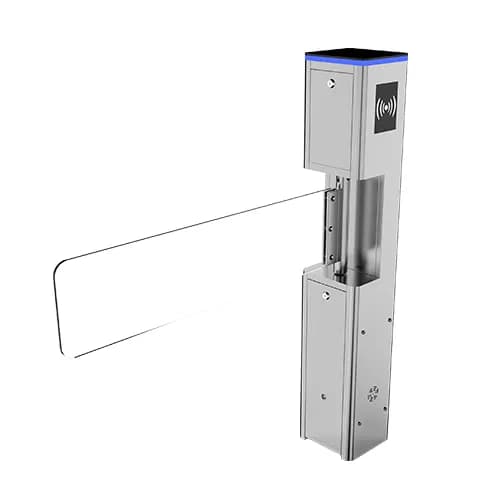

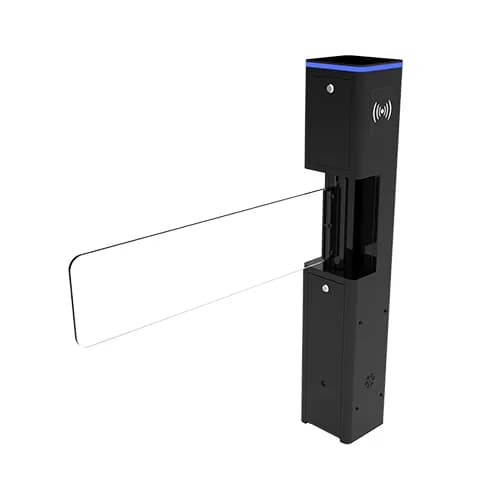

SBT2000S
Specifications
| Model Name | SBT2000SSBT2011SSBT2022S |
|---|---|
| Reader | SBT2000S: N/ASBT2011S: RFIDSBT2022S: RFID & Fingerprint |
| Controller | SBT2000S: N/ASBT2011S: PGIC controllerSBT2022S: PGIC controller |
| Card Capacity | SBT2000S: N/ASBT2011S: 10,000SBT2022S: 10,000 |
| Fingerprint Capacity | SBT2000S: N/ASBT2011S: N/ASBT2022S: 3,000 |
| Log Capacity | SBT2000S: N/ASBT2011S: 100,000SBT2022S: 100,000 |
| Power Requirements | AC 110V / 220V, 50 / 60Hz |
| Lane Width (mm) | 800 (optional ≤920mm） |
| Infrared Sensor | A sensor |
| LED Indicator | Support |
| Cabinet Material | Cold rolled sheet (optional: SUS304 stainless steel） |
| Lid Material | Acrylic |
| Barrier Material | Tempered glass (optional: stainless steel or acrylic) |
| Barrier Movement | Swing |
| Emergency Mode | Support |
| Working Temperature | -15°C to 60°C |
| Working Humidity | 20% to 93% (non-condensing) |
| Working Environment | Indoor / Outdoor (if sheltered) |
| Dimension (L*W*H) | 202 * 187 * 1109 ( mm ) |
| Dimension with Packing (L*W*H) | 280 * 280 * 1160 ( mm ) |
| Weight (kg) | 24 kg |
| Weight with Packing (kg) | 41 kg |
| MCBF | 5million |
| Warranty | 1 year |
