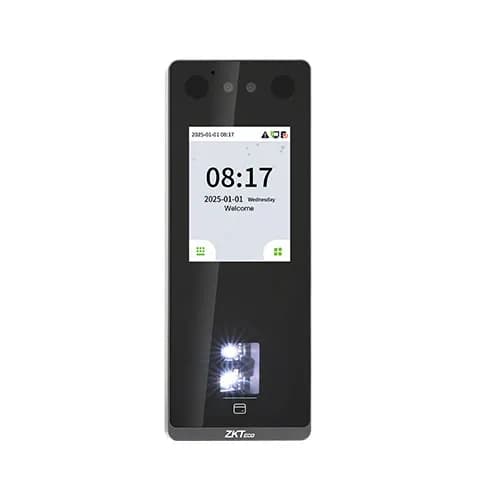

| Model | SenseFace 3ASenseFace 3B |
|---|
| Display | 2.8" @ TFT Color Touch LED Screen (240*320) |
|---|
| Camera | WDR Binocular Camera @ 1MP |
|---|
| Operation System | Linux |
|---|
| Hardware | CPU: Dual Core@1GHzRAM: 512MB; ROM: 8GBSpeaker: 8ohm @1W Microphone: *1 (Sensitivity: -42 dB/ Omni-directional/ Signal-to-Noise Ratio: 58 dB/ Impedance: 2.2kΩ)Supplement Light: NoFingerprint Sensor: In-Glass Fingerprint (Z-ID) (SenseFace 3A) |
|---|
| Authentication Method | SenseFace 3A: Fingerprint / Face / Card / Password (Virtual Keypad)SenseFace 3B: Face / Card / Password (Virtual Keypad) |
|---|
| Fingerprint Template Capacity | SenseFace 3A: 6,000 (1:N) (Standard)SenseFace 3B: / |
|---|
| Face Template Capacity | 3,000 (1:N) (Standard) |
|---|
| Card Capacity | 6,000 (1:N) (Standard) |
|---|
| User Capacity | 6,000 (1:N) (Standard) |
|---|
| Transaction Capacity | 150,000 (1:N) |
|---|
| Max. User Password Length | 8 Digits |
|---|
| Biometric Verification Speed | SenseFace 3A: less than 0.5 sec (Fingerprint); less than 0.35 sec (Facial Authentication)SenseFace 3B: less than 0.35 sec (Facial Authentication) |
|---|
| Touchless Biometric Recognition Distance | 30cm to 200cm (Facial Authentication) |
|---|
| False Acceptance Rate (FAR) % | SenseFace 3A: FAR ≤ 0.01% (Visible Light Facial Authentication) ; FAR ≤ 0.0001% ( Fingerprint )SenseFace 3B: FAR ≤ 0.01% (Visible Light Facial Authentication) |
|---|
| False Rejection Rate (FRR) % | SenseFace 3A: FRR ≤ 0.02% ( Visible Light Facial Authentication); FRR ≤ 0.01% ( Fingerprint )SenseFace 3B: FRR ≤ 0.02% ( Visible Light Facial Authentication) |
|---|
| Biometric Algorithm | SenseFace 3A: ZKFace V4.0; ZKFingerprint V13.0 (Standard) / V10.0 (Optional)SenseFace 3B: ZKFace V4.0 |
|---|
| Card Type | ID Card@125 kHz (Standard) IC Card@13.56 MHz (Optional) |
|---|
| Communication | TCP / IP*1Wi-Fi (IEEE802.11b/g/n/ax) @ 2.4 GHz (Optional)Wiegand (Input or Output)*1RS485: ZKTeco RS485*1USB: Type A (USB Drive Only)*1Aux Inputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, 12V Output*1 |
|---|
| Standard Functions | ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access Levels, Groups, Holidays, Anti-Passback, Record Query, Schedule Bell, Tamper Switch Alarm, Automatic Status Switch, Multiple AuthenticationMethods, SIP Client (Version 2.0), ONVIF (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push and TA Push Protocol Switch Switch, HTTPs / SSH Backend Access, T9 Keyboard (Input) |
|---|
| Optional Functions | IC Card, Wi-Fi, Wireless Doorbell |
|---|
| Access Control Interface | RS485 (RS485 Card Reader / Biometric Reader) |
|---|
| Video Intercom | Video Intercom(ZKTeco Private Protocol via TCP/lP)Support Devices:Standalone Terminal: SenseFace Series;Indoor Monitor: VT07-B01, VT07-B01-WVideo Intercom (Standard SIP Protocol) Support Devices: Standalone Terminal: SenseFace series;Indoor Monitor: VT07-B22L, VT07-B26L-W;Software: ZKBio CVAccess, BioTalk Pro;Mobile App: ZKBio Zlink, ZKBio Zexus |
|---|
| Power Supply | DC 12V 3A |
|---|
| Operating Temperature | -5°C to 45°C |
|---|
| Operating Humidity | 10% to 90% RH (Non-condensing) |
|---|
| Dimensions | 166 mm * 63 mm * 25 mm (L*W*H) |
|---|
| Net Weight | 0.185 Kg |
|---|
| Supported Software | On-Premise Software: ZKBio CVAccess (AC PUSH) & ZKBio Time (TA PUSH)Cloud-based Software: ZKBio Zlink (Supports Web Portal & Mobile App) |
|---|
| Installation | Wall-mount (Compatible with Asian Gang Box / Single Gang Box) |
|---|
| Ingress Protection Rating | IP65 (waterproof and dustproof ) |
|---|
| Certifications | ISO14001, ISO9001,CE, FCC, RoHS |
|---|
