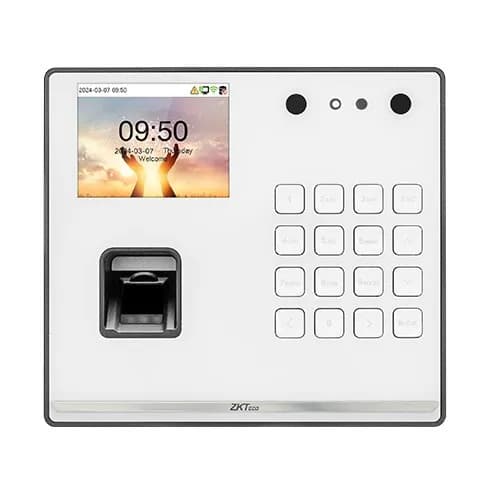

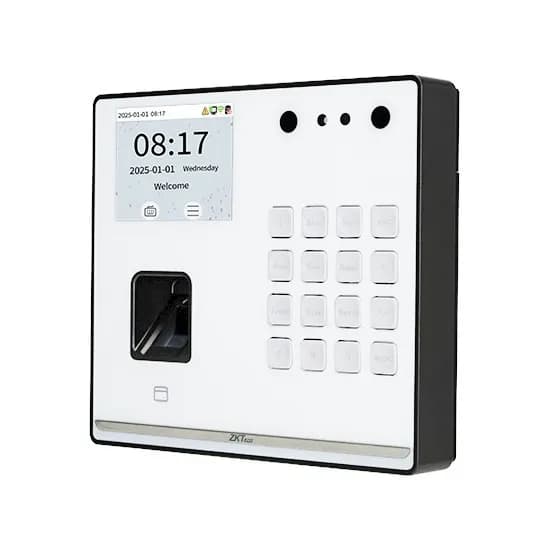

SenseFace M2F-LR

Qty in stockQty per box

Specifications

Specification	SenseFace M2F-LR
Display	2.8" TFT Color LCD, 320 × 240
Camera	Binocular Camera, 1MP
Operating System	Linux
CPU	Dual Core @ 1GHz
RAM / ROM	512MB / 8GB
Speaker	8Ω @ 1W
Physical Keypad	16 Keys
Fingerprint Sensor	ZK Optical Sensor
Supplement Light	Yes
Authentication Methods	Fingerprint / Face / Card / Password
Fingerprint Capacity	1,000 templates (1:N), Standard
Face Capacity	500 templates (1:N), Standard
Card Capacity	1,000 cards (1:N), Standard
User Capacity	1,000 users, Standard
Transaction Capacity	150,000 records
User Password	Up to 8 digits
Fingerprint Authentication Speed	Less than 1 sec
Facial Authentication Speed	Less than 1.2 sec
Facial Recognition Distance	50 cm to 180 cm
FAR	Fingerprint ≤ 0.0001% / Face ≤ 0.02%
FRR	Fingerprint ≤ 0.1% / Face ≤ 0.05%
Biometric Algorithm	ZKFingerprint V13.0 / V10.0 Optional; ZKFace V4.0
Card Type	ID Card 125 kHz Standard / IC Card 13.56 MHz Optional
Communication	TCP/IP, Wi-Fi 2.4 GHz Optional, USB Type-A
Access Control	Electric Lock / Door Sensor / Exit Button
Standard Functions	ADMS, DST, Photo Capture, Event Photo Capture, Record Query, Schedule Bell, Tamper Alarm, Automatic Status Switch, Multiple Authentication Methods, HTTPS / SSH Backend Access, T9 Keyboard
Backup Battery	Optional 2,000 mAh Lithium Battery
Battery Operating Time	Up to 4 hours
Battery Standby Time	Up to 7 hours
Charging Time	Approximately 5 hours
Power Supply	DC 12V / 1.5A
Operating Temperature	-5°C to 45°C
Operating Humidity	10% to 90% RH, non-condensing
Dimensions	154 × 138 × 34 mm (L × W × H)
Net Weight	0.43 kg
Gross Weight	1.03 kg
Supported Software	ZKBio Zlink / ZKBio Time
Installation	Wall-mount; compatible with Asian Gang Box / Single Gang Box
Certifications	ISO14001, ISO9001, CE, FCC, RoHS
