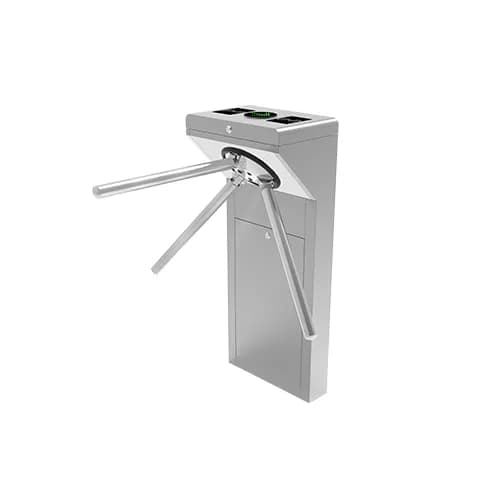

| Model Name | TS1000 Plus Series |
|---|
| Visual Indicator | Steady green = Normal useSteady red = Barrier closed |
|---|
| Audio Indicator | Internal buzzer |
|---|
| Lane Type | Single lane |
|---|
| Lane Width (mm) | 550 |
|---|
| Barrier Movement Type | Rotating |
|---|
| Lid Material | SUS304 stainless steel |
|---|
| Lid Options Authentication Methods | Streamlined under mount options:Fingerprint / RFID |
|---|
| Chassis Material | SUS304 stainless steel (T=1.2mm) |
|---|
| Chassis Color | Silver-gray |
|---|
| Barrier Material | SUS304 stainless steel |
|---|
| Motherboard Function | Barrier open duration, access mode |
|---|
| Motherboard Communication | Fire alarm port (relay)*1, RS485 port *1 |
|---|
| Controller | C3-200 Pro Plus & InBio260 Pro Plus (Recommended)Other controller depends on dimensions fitting in (Optional) |
|---|
| Credential Options | Under mount RFID reader: ProID Series, KR Series (Supported model)Under mount fingerprint reader: FR1200 / FR1500S |
|---|
| Flow Rate | RFID: 25 passengers per minuteFingerprint: 20 passengers per minute |
|---|
| Footprint (mm*mm) | 100*420 |
|---|
| Barrier Width | 500mm |
|---|
| Accessibility | Wireless remote control, wired remote control, QR reader |
|---|
| Power Supply | 110V / 220V AC@50 to 60 Hz, DC 12V |
|---|
| Power Rating | 10VA (standby)40VA (operation) |
|---|
| Fire Signal | Input for voltage free contact |
|---|
| Noise Level | Less than 65dB |
|---|
| MTTR | Less than 60 minutes |
|---|
| MCBF | 2 million |
|---|
| Weight (kg) | Gross weight (25kg)Net weight (20kg) |
|---|
| Dimension (L*W*H) | 780*750*1000mm |
|---|
| Operating Temperature | -20°C to 70°C |
|---|
| Operating Humidity | 0% to 85% RH (Non-condensing) |
|---|
| Certifications | CE, FCC, UKCA, ISO 9001 |
|---|
| Ingress Protection Rating | IPX4 |
|---|
| Supported Software | ZKBio CVAccess / ZKBio CVSecurity(depends on equipped access controller) |
|---|
| Safety Features | Voltage free contact input for fire alarm fail state automatic drop arm during power off |
|---|
| Security Features | Anti-tailgating |
|---|
| Product Delivery | press-assembled |
|---|
| Application Environment | Indoor / outdoor (if sheltered) |
|---|
| Site Preparation | Flat & level finished floor (base plate in options for unfinished floor) |
|---|
| Dimensions with Packing ( L*W*H ) | 380 * 520 * 1100mm |
|---|
| Security Level | Medium |
|---|
| Emergency Mode | Support (drop arm) |
|---|
| Packing Material | Cartoon (Standard), wooden (Optional) |
|---|
