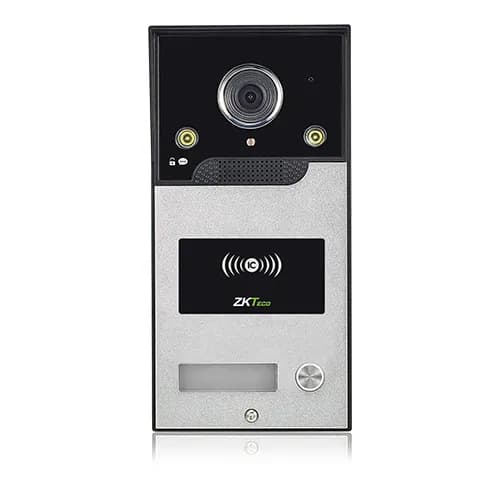

VE01-B52L
Specifications
| System | Linux |
|---|---|
| Video Compression | H.264 |
| Image Sensor | 1/2.7” 2MP CMOS |
| Wide Dynamic Range (WDR) | Yes (120°) |
| Maximum View Angle | 138° (H), 105° (V) |
| Day/Night | Color Image |
| Infrared Light | Support 10 meters IR night vision |
| Minimum Illumination | 0.001 Lux |
| Audio Input | Microphone*1 (Omni-directional) |
| Audio Output | Built-in Speaker |
| Bi-directional Talk | Support two-way talk |
| Authentication Method | IC Card |
| Card Capacity | 2,000 (1:N) (Standard) |
| Transaction Capacity | 2000 |
| Card Type | IC Card@13.56MHz (Standard) |
| Card Reading Time | 1 second |
| Communication | Wi-Fi (IEEE 802.11 a/b/g) @2.4GHzRS485: ZKTeco RS485*1 |
| Ingress Protection Rating | IP65 |
| Installation Method | Flush Mount (flat surface), Rain Cover*1 |
| Casing Material | Aluminium Alloy |
| Power Supply | 12 VDC, 2A PoE (IEEE 802.3af/ at)Power supply through indoor monitor |
| Power Consumption | Standby≤2 W; Operating≤7 W |
| Operating Temperature | –30 °C to +60 °C |
| Operating Humidity | 20% to 95% RH (Non-condensing) |
| Dimensions (H*W*D) | 173*85*41 mm |
| Weight | 0.4 kg |
