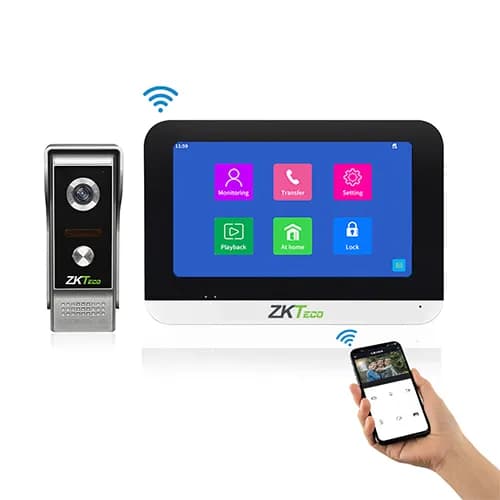

VK07-B51L Kit
Specifications
| System | Linux |
|---|---|
| Video Compression | H.264 |
| Image Sensor | 1/2.7” 2MP CMOS |
| Wide Dynamic Range (WDR) | Yes (120°) |
| Maximum View Angle | 138° (H), 105° (V) |
| Day/Night | Color Image |
| Infrared Light | Support 10 meters IR night vision |
| Minimum Illumination | 0.001 Lux |
| Audio Input | Microphone*1 (Omni-directional) |
| Audio Output | Built-in Speaker |
| Bi-directional Talk | Support two-way talk |
| Communication | Wi-Fi (IEEE 802.11 a/b/g) @ 2.4 GHzRS485: ZKTeco RS485*1 |
| Ingress Protection Rating | IP55 |
| Installation Method | Wall mount |
| Casing Material | Aluminium Alloy |
| Power Supply | 12 VDC, 2A PoE (IEEE 802.3af/ at)Power supply by indoor monitor |
| Power Consumption | Standby≤2 W; Operating≤7 W |
| Operating Temperature | –30 °C to +60 °C |
| Operating Humidity | 20% to 95% RH (Non-condensing) |
| Dimensions (H*W*D) | 125*45*27(mm) |
| Weight | 0.25kg |
| Resolution | 1024*600 |
| Power supply | PoE (IEEE 802.3 af/ at) DC 15V/1.2A |
| Standby Power | ≤1W |
| Operating Power | ≤10 W |
| TF card | Max 64GB |
| Button | Virtual button on the touch screen |
| Interfaces | Network Cable Port*1 |
| Support Wi-Fi | ( IEEE 802.11 a/b/g) @ 2.4 GHz |
| Unlock signal output*1 | NO / NC port |
| Supported Mobile App | ZSmart |
| Material | Tempered glass panel + ABS plastic |
| Dimensions(W*H*D) | 195*132*18(mm) |
