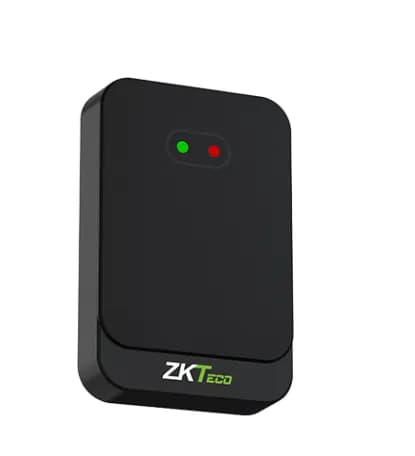

VR30
Specifications
| Model | VR30 |
|---|---|
| Operating Frequency | 79GHz |
| Modulation Mode | FMCW |
| Antenna MIMO | 2T3R |
| Transmitting Power | 10dBm |
| EIRP | 24dBm |
| Antenna Gain | 14dBi |
| Azimuth Field of View | ±60° (120° total) |
| Vertical Field of View | Elevation ±10° (20° total) |
| Maximum Detection Distance | 0–7m Adjustable, same for vehicle and pedestrian |
| Operating Temperature | -40°C to 85°C |
| Operating Voltage | DC 12V |
| Power Consumption | ≤1.3W |
| Net Weight | 197g |
| Package Dimension (L*W*H) | 133 * 90 * 37mm |
| Product Dimension (L*W*H) | 118 * 78 * 19mm |
| Online Debugging/Upgrading | Bluetooth, RS485 |
| Supported Software | Apps: ZKEasy Go OS: iOS 12+; Android 10+ |
| Ingress Protection Rating | IP67 |
| Certification | CE |
