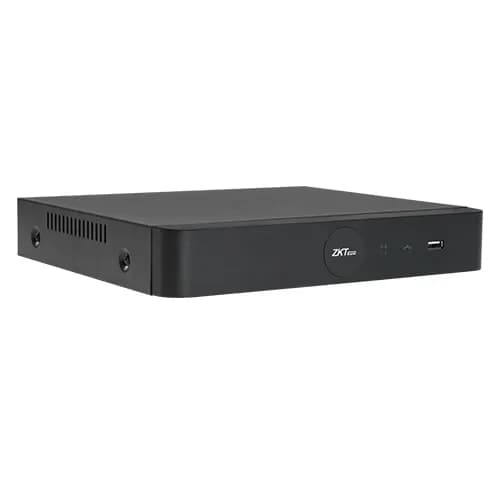

| Model | Z8504NEQ-S |
|---|
| Main Processor | Multi-core embedded processor |
|---|
| Operating System | Embedded LINUX |
|---|
| Operation Interface | Web browser & Local GUI |
|---|
| Max IPC Video Input | 4CH |
|---|
| Two-way Talk | Support |
|---|
| Audio Compression | G.711u |
|---|
| Max Audio Input | 4CH by IPC |
|---|
| Third Party Camera Access | ONVIF & RTSP |
|---|
| Display Split | 1/4 CH |
|---|
| Resolution | 8MP(3840*2160) / 5MP(2592*1944) / 2MP(1920*1080) /1.3MP(1280*1024) / 1MP(1280*720) / D1(1024*768) |
|---|
| Live View Capability | 1CH@8MP(25/30fps) / 4CH@D1(25/30fps) |
|---|
| Video Compression | H.265 / H.264 |
|---|
| Recording Resolution | 8MP / 5MP / 3MP / 1080P / 960P / 720P / D1 / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
|---|
| Max. Decoding Capability | 4CH@8MP(25/30fps) |
|---|
| Incoming Bandwidth | 40 Mbps |
|---|
| Outgoing Bandwidth | 40 Mbps |
|---|
| Stream Type | Video, Video & Audio |
|---|
| Bit Rate | Main Stream: 16Kbps ~ 8192KbpsSub Stream: 50Kbps ~ 700Kbps |
|---|
| Storage Method | Local hard drive and network |
|---|
| Record Mode | Schedule, Manual, Motion Detection, IVA Events Alarm |
|---|
| Record Interval | 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
|---|
| Playback Channel | 4CH synchronously playback |
|---|
| Search Mode | Time / Date, Alarm Types, IVA Search |
|---|
| Playback Function | Play, Stop, Play Forward, Play Backward, 30 Seconds Forward, 30 Seconds Backward, Fast Play, Slow Play, Single Frame Play, Hide/Show Time Bar, Backup, Snapshot, Full Screen |
|---|
| Backup Mode | USB Device / Network Remote |
|---|
| IVA by Camera | Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle classification), Target Counting, Object Lost/Left |
|---|
| IVA by Device(Number of Channels) | PC |
|---|
| Local IVA Functions displaying | Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle classification), Target Counting, Counting Statistics, Object Lost/Left |
|---|
| IVA by Camera (Number of Channels) | 4 |
|---|
| Smart IVA Alarm | Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle classification), Target Counting, Counting Statistics, Object Lost/Left |
|---|
| Regular Detection | Motion Detection / Video Shelter / Video Loss |
|---|
| Anomaly Alarm | HDD Full, No HDD, S.M.A.R.T error, Network disconnected, IP conflict |
|---|
| Alarm Linkage Actions | Preview, Recording, Snapshot,Buzzer, Preset, Email, Tour, Upload center |
|---|
| Smart Search | Support smart search out target video by human and vehicle classification filtering |
|---|
| Network Protocol | TCP / IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, IPv4, UDP, SSL / TLS, PPPoE, SNMP, WebSocket, P2P |
|---|
| Max. Online Users | 20 |
|---|
| Web Browser | Google Chrome / Microsoft Edge / Firefox / Safari / Opera |
|---|
| Operation System | Windows |
|---|
| Management Platform | ZKBio CVSecurity / ZKBio Access IVS / AntarVis 2.0 |
|---|
| Mobile Application | AntarView Pro+ (iOS & Android) |
|---|
| P2P Cloud Service | Support |
|---|
| Interoperability | ONVIF Profile S/G, SDK, CGI, API |
|---|
| SATA Ports | 1 SATA Port, up to 8 TB capacity |
|---|
| eSATA | N/A |
|---|
| Raid 0 /1 / 5 / 6 / 10 | N/A |
|---|

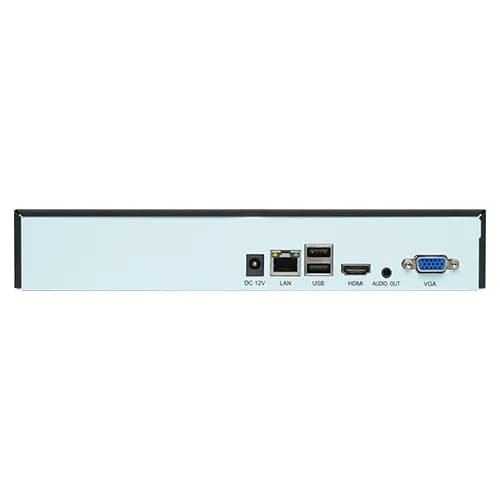

| HDMI | 1*HDMI (4K) |
|---|
| VGA | 1920*1080 / 60Hz, 1280*1024 / 60Hz |
|---|
| Network Interface | 1 RJ-45 Port (10/100Mbps self adaptive) |
|---|
| PoE Ports | N/A |
|---|
| Standard | N/A |
|---|
| USB | 3*USB 2.0 |
|---|
| Audio Input/Output | 0 /1 output |
|---|
| Alarm Input/Output | N/A |
|---|
| RS-485 | N/A |
|---|
| RS-232 | N/A |
|---|
| Power Supply | DC 12V/2A |
|---|
| Power Consumption | ≦ 24W (without HDD) |
|---|
| Casing | 1U |
|---|
| Operating Temperature | -10°C to 55°C / 14°F to 131°F |
|---|
| Operating Humidity | 0% to 90% RH (Non-condensing) |
|---|
| Storage Humidity | 30% to 80% RH (Non-condensing) |
|---|
| Operating Altitude | 3,000 m (9,842.52 ft) |
|---|
| Installation | Desktop / Cabinet mount |
|---|
| Dimensions(L*W*H) | 255 * 210 * 43 (mm) |
|---|
| Net Weight | 2.8kg (without HDD) |
|---|
| Gross Weight | 3.3kg (without HDD) |
|---|
| Certifications | ISO14001, ISO9001, CE, FCC |
|---|
