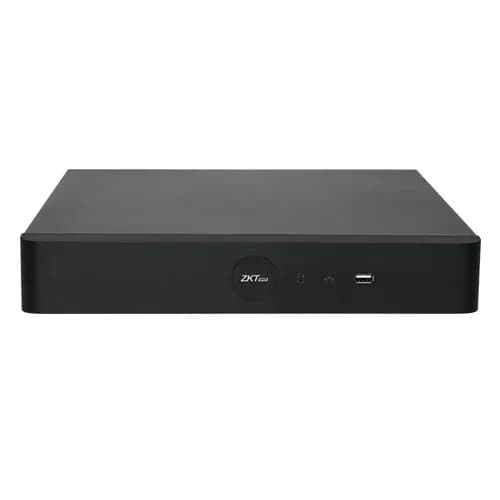

Z8516NEQ-S

Specifications

Model	Z8516NEQ-S
Main Processor	Multi-core embedded processor
Operating System	Embedded LINUX
Operation Interface	Web browser & Local GUI
Max IPC Video Input	16CH
Two-way Talk	Support
Audio Compression	G.711u
Max Audio Input	16CH by IPC
Third Party Camera Access	ONVIF & RTSP
Display Split	1 / 4 / 6 / 8 / 9 / 16 CH
Resolution	5MP(25921944) / 2MP(19201080) /1.3MP(12801024) / 1MP(1280720) / D1(1024*768)
Live View Capability	1CH@5MP(25/30fps) / 16CH@D1(25/30fps)
Video Compression	H.265 / H.264
Recording Resolution	5MP / 3MP / 1080P / 960P / 720P / D1 / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Max. Decoding Capability	16CH@5MP(25/30fps)
Incoming Bandwidth	80 Mbps
Outgoing Bandwidth	80 Mbps
Bit Rate	Main Stream: 16Kbps ~ 8192KbpsSub Stream: 50Kbps ~ 700Kbps
Storage Method	Local hard drive and network
Record Mode	Schedule, Manual, Motion Detection, IVA Events Alarm
Record Interval	1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Playback Channel	4CH synchronously playback
Search Mode	Time / Date, Alarm Types, IVA Search
Playback Function	Play, Stop, Play Forward, Play Backward, 30 Seconds Forward, 30 Seconds Backward, Fast Play, Slow Play, Single Frame Play, Hide/Show Time Bar, Backup, Snapshot, Full Screen
Backup Mode	USB Device / Network Remote
IVA by Camera	Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle classification), Target Counting, Object Lost / Left
Local IVA Functions displaying	Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle classification), Target Counting, Counting Statistics, Object Lost / Left
IVA by Device(Number of Channels)	Up to IPC
IVA by Camera (Number of Channels)	16
Regular Detection	Motion Detection / Video Shelter / Video Loss
Smart IVA Alarm	Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle classification), Target Counting, Counting Statistics, Object Lost / Left
Anomaly Alarm	HDD Full, No HDD, S.M.A.R.T error, Network disconnected, IP conflict
Alarm Linkage Actions	Preview, Recording, Snapshot,Buzzer, Preset, Email, Tour, Upload center
Smart Search	Support smart search out target video by human and vehicle classification filtering
Network Protocol	TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, IPv4, UDP, SSL/TLS, PPPoE, SNMP, WebSocket, P2P
Max. Online Users	20
Web Browser	Google Chrome / Microsoft Edge / Firefox / Safari / Opera
Operation System	Windows
Management Platform	ZKBio CVSecurity / ZKBio Access IVS / AntarVis 2.0
Mobile Application	AntarView Pro+ (iOS & Android)
P2P Cloud Service	Support
Interoperability	ONVIF Profile S / G, SDK, CGI, API
SATA Ports	1 SATA Port, up to 8 TB capacity
eSATA	N/A
Raid 0 /1 / 5 / 6 / 10	N/A
HDMI	1*HDMI
VGA	19201080/60Hz, 12801024/60Hz
Network Interface	1 RJ-45 Port (10/100Mbps)
PoE Ports	N/A
Standard	N/A
USB	USB 3*USB 2.0
Audio Input/Output	0/1 output
Alarm Input/Output	N/A
RS-485	N/A
RS-232	N/A
Power Supply	DC 12V / 2A
Power Consumption	≦ 24W (without HDD)
Casing	1U
Operating Temperature	-10°C to 55°C / 14°F to 131°F
Operating Humidity	0% to 90% RH (Non-condensing)
Storage Humidity	30% to 80% RH (Non-condensing)
Operating Altitude	3,000 m (9,842.52 ft)
Installation	Desktop / Cabinet mount
Dimensions(LWH)	255 * 210 * 43 (mm)
Net Weight	2.5kg (without HDD)
Gross Weight	3kg (without HDD)
Certifications	ISO9001, ISO14001, CE, FCC
