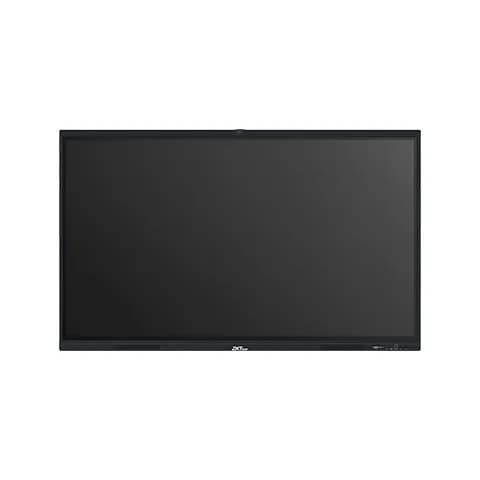

| Model | ZK-IWB65BP ZK-IWB75BP ZK-IWB86BP |
|---|
| Screen Size | ZK-IWB65BP: 65 inchZK-IWB75BP: 75 inchZK-IWB86BP: 86 inch |
|---|
| Screen Type | ZK-IWB65BP: ADSZK-IWB75BP: ADSZK-IWB86BP: IPS |
|---|
| Backlight | D-LED |
|---|
| Backlight Life | 30,000 hours (min.)(typ.) |
|---|
| Resolution | 3840 × 2160 (pixels) |
|---|
| Brightness | 350cd/m²(typ.) |
|---|
| Contrast Ratio | 1200:1 (typ.) |
|---|
| Response Time | ≤10ms |
|---|
| Refresh Frequency | 60Hz |
|---|
| Aspect Ratio | 16:09 |
|---|
| View Angle | 178°(H) / 178°(V) |
|---|
| Display Colors | 1.07B(8bit+FRC) |
|---|
| Bonding Technology | The gap between tempered glass and screen is close to 0 |
|---|
| Touch Technology | Advanced infrared touch technology |
|---|
| Touch Points | up to 20 |
|---|
| Touch Response Time | ≤10ms |
|---|
| Accuracy | Center 90% touch area: 1mm |
|---|
| Anti-Glare | High transparent+Smooth+Anti-glare |
|---|
| Glass Hardness | 9H (Pencil Hardness) ; 7(Mohs Hardness) Tempered Glass |
|---|
| Writing Height | ≤3mm |
|---|
| CPU | Quad core A55 |
|---|
| GPU | MaliG52 MP2 |
|---|
| Memory (RAM) | 4GB(8GB Optional) |
|---|
| Storage (ROM) | 32GB(64GB Optional) |
|---|
| Operating System | Android 11 / Windows 11 (Optional) |
|---|
| Front Port | USB 3.0*2Type-C(65W)*1Touch*1HDMI IN*1 |
|---|
| Bottom Port | VGA IN*1AUDIO IN*1AUDIO OUT*1S/PDIF OUT*1 |
|---|
| Side Port | LAN IN/OUT*1RS232*1USB 3.0*2Touch * 1HDMI IN: 2HDMI OUT*1USB 2.0*1OPS Slot *1 |
|---|
| WiFi | WiFi 6: IEEE802.11 ax/ac/b/g/n/ |
|---|
| Bluetooth | BT 5.2: 2.1+EDR/4.2/5.2 |
|---|
| Camera | Pixel: 13 MegapixelsFOV: FOV Diagonal 109° |
|---|
| Microphone | Array quantity: 6 microphones array |
|---|
| Operating Power | 100 V ~ 240 V/AC, 50/60 Hz |
|---|
| Standby power consumption | <0.5W |
|---|
| Average power consumption (Without OPS) | ZK-IWB65BP: 200WZK-IWB75BP: 300WZK-IWB86BP: 550W |
|---|
| Dimensions (W × H × D) | ZK-IWB65BP: 1488×87×906 mmZK-IWB75BP: 1709×88×1029 mmZK-IWB86BP: 1957x88.x1169 mm |
|---|
| Package Dimensions (L × W × H) | ZK-IWB65BP: 1625×215×1025 mmZK-IWB75BP: 1850×225×1120 mmZK-IWB86BP: 2120×225×1280 mm |
|---|
| Net Weight (kg) | ZK-IWB65BP: 37KgZK-IWB75BP: 48KgZK-IWB86BP: 62Kg |
|---|
| Weight with Packaging (kg) | ZK-IWB65BP: 46KgZK-IWB75BP: 63KgZK-IWB86BP: 80Kg |
|---|
| Case Material | Aluminum alloy and engineered metal framework |
|---|
| Color | Black |
|---|
| Operating Temperature | 0°C to 40°C |
|---|
| Storage Temperature | 10°C to 60°C |
|---|
| Operating Humidity | 20% to 80% RH (Non-condensing) |
|---|
| Storage Humidity | 10% to 60% RH (Non-condensing) |
|---|
| Cables | Power Cable*1 |
|---|
| User manual | 1 |
|---|
| Wall mount | 1 |
|---|
| Stylus Pen | 2 |
|---|
| Movable bracket | YES |
|---|
| OPS | YES |
|---|
| Wireless Dongle | YES |
|---|
