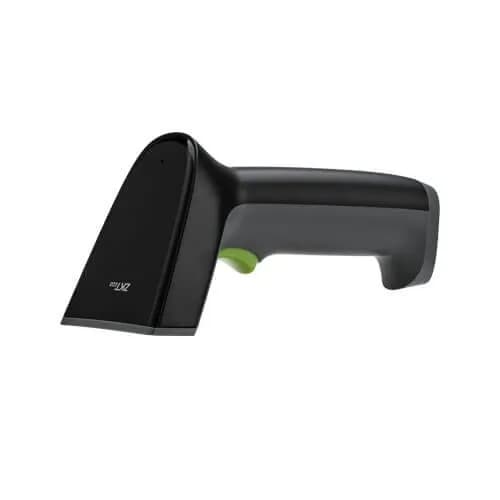

ZKB103S
Specifications
| Specification | ZKB103S |
|---|---|
| Dimensions (L × W × H) | 167.3 × 70.5 × 81.5 mm |
| Weight | 175 g |
| Voltage & Current | 5 VDC; Operating: 90 mA; Standby: 30 mA |
| Color | Black and Gray (White, optional) |
| Support Host Interface | 2.4 GHz (2.4 GHz + Bluetooth, optional) |
| User Indicators | Decode LED Indicator; Beeper (adjustable tone and volume) |
| Scan Mode | Manual Reading Mode |
| Light Source | 620 nm Laser Diode |
| Scan Speed | 300 scans/second Max |
| Minimum Print Contrast | 25% |
| Roll Tolerance | ±30° |
| Pitch Tolerance | ±60° |
| Skew Tolerance | ±60° |
| Decode Capability | 1D: UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7) |
| Radio Range | 2.4 GHz: 60 m (Bluetooth: 15 m) |
| Wireless Communication Mode | Synchronous Mode; Storage Mode |
| Battery Type | 18650 Li-ion Battery |
| Battery Capacity | 2000 mAh |
| Operating Time Per Full Charge | ≥15 Hours |
| Standby Time Per Full Charge | ≥10 Weeks |
| Charge Time (from Empty) / Standard USB | 5 Hours |
| Operating Temperature | -20°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 5% to 95% Relative Humidity, Non-condensing |
| Electrostatic Discharge (ESD) | ±2 kV Direct; ±8 kV Air |
| Ambient Light Immunity | 5000 Lux Max |
| Decode Ranges | Near / Far |
| Code 39: 4 mil | 3 cm to 10 cm |
| Code 39: 5 mil | 3 cm to 13 cm |
| Code 39: 13 mil | 4 cm to 30 cm |
| Code 39: 20 mil | 6 cm to 40 cm |
| EAN-13: 13 mil | 3 cm to 30 cm |
| UPC-A: 13 mil | 3 cm to 30 cm |
