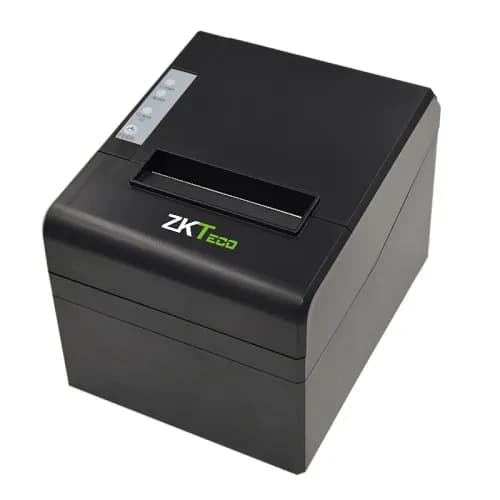

ZKP8001
Qty in stockQty per box
Specifications
| Category | Specification | Details |
|---|---|
| General | Model | ZKP8001 |
| Printing | Print Method | Direct Thermal Line Printing |
| Print Speed | 230 mm/sec |
| Print Command | Compatible with ESC / POS |
| TPH | 100 km |
| Interface | Optional | Serial / USB / Ethernet |
| Character | Font A | 12×24 dots, 1.5(W)×3.0(H) mm |
| Font B | 9×17 dots, 1.1(W)×2.1(H) mm |
| Chinese | 24×24 dots, 3.0(W)×3.0(H) mm |
| Alphanumeric | ASCII 12×24 dots |
| Barcode | 1D | UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) / CODABAR / ITF / CODE39 / CODE93 / CODE128 |
| 2D | QR CODE |
| Power Supply | Output | DC 24V / 2.5A |
| Cash Drawer | DC 24V / 1A |
| Paper | Paper Type | Thermal Receipt Paper |
| Paper Width | 79.5 ± 0.5 mm (Print Width 72 mm) |
| Paper Thickness | 0.060 ~ 0.08 mm |
| Roll Diameter | 80 mm |
| Paper Cutter | Auto Cutter: Full or Partial Cut |
| Physical Environment | Temperature | 0 – 45 ℃ |
| Contrast Humidity | 10% – 80% RH |
| Weight | 2 kg |
| Dimension | — | 190 × 145 × 145 mm (L × W × H) |
| Software | Driver | Windows 2000, 2003, XP, Vista, 7, 8, 10, Linux; Compatible with EPSON and SAMSUNG drivers |
