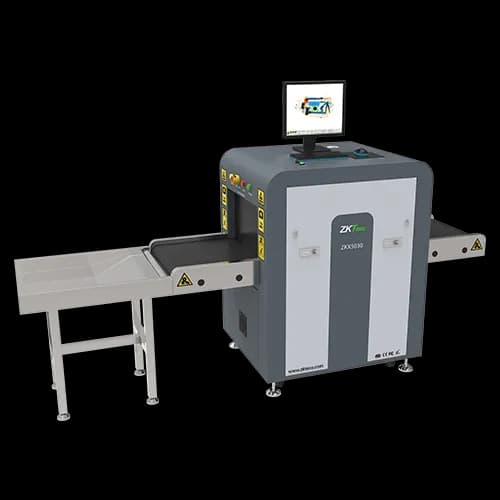

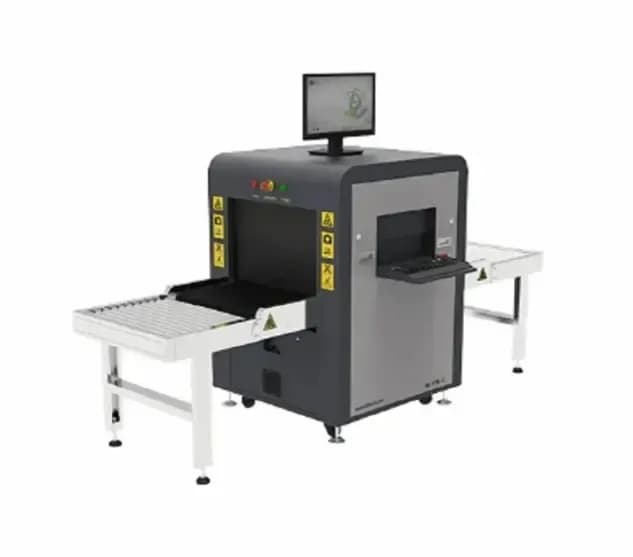

ZKX5030
Specifications
| Tunnel Size | W507 mm × H305 mm |
|---|---|
| Speed | 0.20 m/s |
| Height of Transmission Belt | 730 mm |
| Maximum Load | ≤120 Kg (Adequate distribution) |
| Wire Resolution | 34 AWG (0.16 mm metal wire) |
| Space Definition | Horizontal Φ1.0 mm / Vertical Φ2.0 mm |
| Penetrate Definition | 32 AWG |
| Penetration | 8 mm Steel board |
| Monitor | 17 inch LED |
| Film Safety | ASA/ISO1600 standard of film safety |
| Tube Voltage | 80 kV |
| Cooling | Sealed oil cooling / 100% |
| Single Inspection Dosage Rate | ≤1.0 μGy |
| Radiation Leak Dosage | 0.1 μGy/h (5 cm from the shell) |
| Package Size | L1900 mm × W990 mm × H1485 mm |
| Package Weight | 410 KG |
| Power Consumption | 1 kVA |
| Noise | 53.8 dB(A) |
