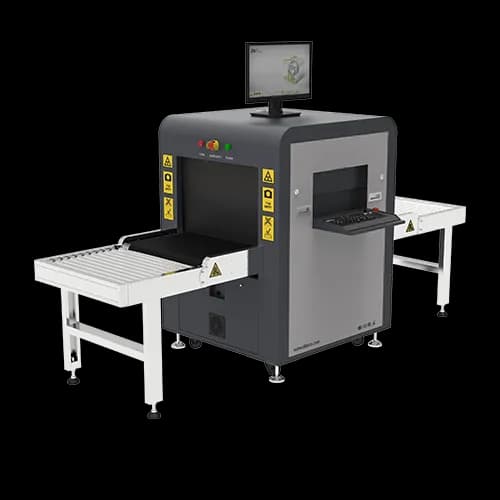

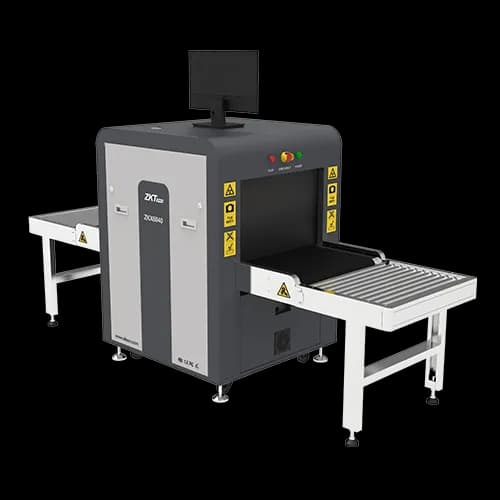

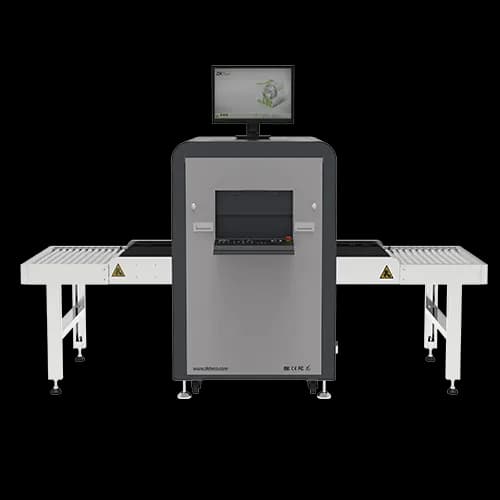

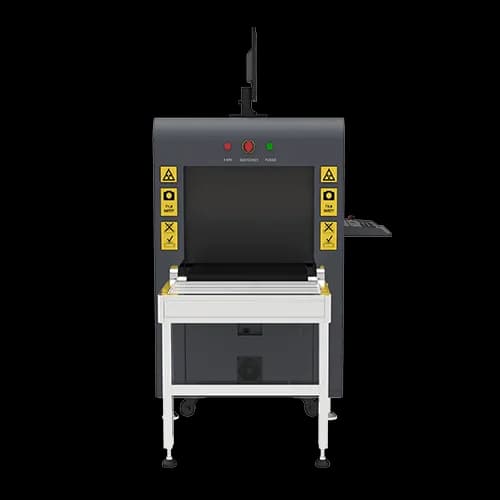

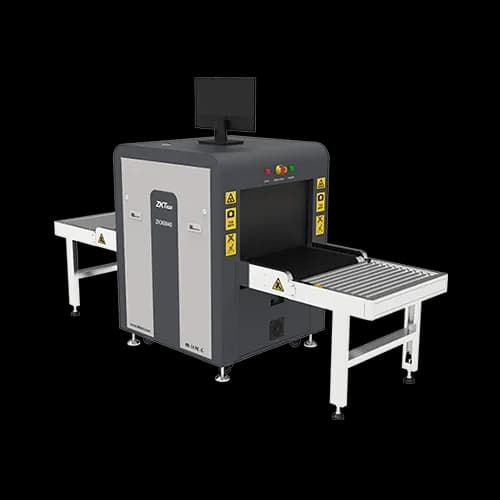

ZKX6040A
Specifications
| Tunnel Dimensions (W*H) | 600 * 400 (mm) |
|---|---|
| Conveyor Speed | 0.3m/sec |
| Load on Conveyer | 180 kg (evenly distributed) |
| Conveyor Height | 680 mm |
| Space Definition | Horizontal Φ1.0mm / Vertical Φ2.0mm |
| Steel Penetration | 35 mm |
| Wire Resolution | 38AWG |
| Dual-energy Detector | Yes |
| Number of Colors in X-ray Image | 3 |
| Dimensions (L*W*H) | 1701 * 910 * 1305 (mm) |
| Package Dimensions (L*W*H) | 2070*1150*1400 ( mm ) |
| Weight | 380 kg |
| Package Weight | 480 kg |
| Film Safety | ASA / ISO1600 standard of film safety |
| Single Inspection Dosage Rate | ≤1.0μGy |
| Supported Software | ZKBio SIS |
| Communication Interface | RJ45 (TCP/IP) |
| Radiation Leak Dosage | 0.1μ Gy/h (5cm from the surface) |
| Operating Temperature | -10°C to +45°C |
| Storage Temperature | -20°C to +60°C |
| Humidity | 5-95%, non-condensing |
| Power Supply | 230 VAC +/- 10% / 60 / 50 Hz (EU)110 VAC +/- 10% / 60 / 50 Hz (US) |
| Power Consumption | Max. 1.0 kVA |
| Sound Pressure | 54 dB |
| Processor | Intel® Braswell SoC N3160 (QC-2.24GHz) |
| Monitor | 21” LED color |
| Memory | Onboard 4 GB RAM |
| Hard Drive | 2 TB |
| USB Port | 4 ports |
| Max. Storage | Up to 200,000 scanned images |
| Tube Current | 0.8 mA |
| Anode Voltage | 150 kV rated |
| Generator Cool | Seal oil cooling / 100% |
| Orientation | Vertically upwards |
