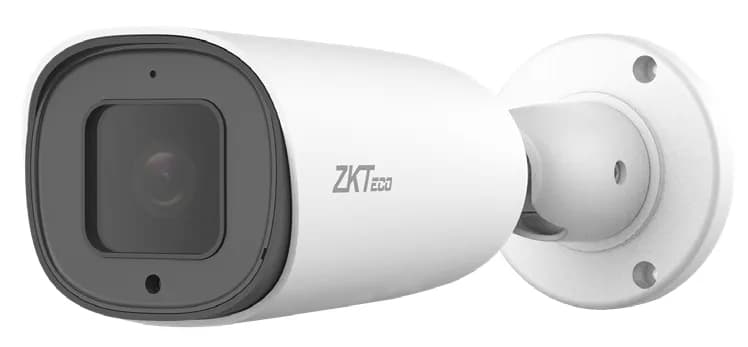

BL-855P48S-S7
Qté en stockQté par boîte
Spécifications
| Model | BL-855P48S-S7 |
|---|---|
| Image Sensor | 1/2.7” CMOS |
| Effective Pixels | 2592 * 1944 |
| Flash / DDR | 128Mb / 1Gb |
| IR LED No. | 4 |
| IR Distance | 80m |
| S/N Ratio | > 52dB |
| Lens Type | Motorized |
| Mount Type | Board-in |
| Focal Length | 3.6mm ~ 10.8mm |
| Aperture | F1.7 ~ F3.3 |
| FOV | 35°~95° |
| Optical Zoom | 3X |
| Compression | H.265 / H.264 |
| Resolution | 5MP (2592 x1944) / 4MP (2688 x 1520) / 3MP (2304 x 1296) / 1080P (1920 x 1080) /1.3MP (1280 x 960) / 720P (1280 x 720) |
| Bitrate Control | CBR / VBR |
| Bitrate | H.265: 3Mbps - 8MbpsH.264: 3Mbps - 8Mbps |
| Main Stream | 5MP@25fps / 4MP@25fps / 3MP@25fps /1080P@25fps / 960P@25fps / 720P@25fps |
| Sub Stream | D1@25fps / VGA@25fps / CIF@25fps |
| Third Stream | N/A |
| Motion Detection | Support |
| Digital Zoom | Support |
| Audio Compression | G7.11u |
| Privacy Mask | 4 areas |
| WDR | True WDR |
| Day / Night | Support |
| White Balance | Support |
| Corridor Mode | Support |
| Defog | N/A |
| Noise Reduction | 2D/3D DNR |
| HLC | Support |
| Mirror / Flip | Support |
| BLC | Support |
| ROI | 4 areas |
| Anti-flicker | Support |
| Intelligent Video | Face Detection |
| Face Templates | N/A |
| Face Detected Per Frame | 6 |
| Detected Face Size | 80 x 80 ~ 300 x 300 Pixels |
| Face Quality Filtering | Support |
| Detection Area | User-defined |
| Capture Response | ≤200ms |
| Protocol | TCP/IP, UDP, HTTP, DHCP, RTSP, NTP, RTMP |
| Interoperability | ONVIF Profile S, SDK, API |
| Max. Online Users | 3 |
| Web Browser | IE / Firefox / Chrome / Safari |
| Management Software (VMS) | AntarVis 2.0ZKBioSecurity IVSZKBio Access IVS |
| Operation System | Windows |
| Mobile APP | AntarView Pro |
| P2P Cloud Service | Support |
| Ethernet | 1 RJ-45 port (10/100Mbps) |
| Audio I/O | 1/0 |
| Alarm I/O | N/A |
| RS485 | N/A |
| Reset Button | N/A |
| Micro-SD Slot | N/A |
| ANR | N/A |
| USB | N/A |
| Power Supply | PoE (IEEE802.3af ), DC 12V±10% |
| Power Consumption | < 3W |
| Ingress Protection | IP67 |
| Dimensions (L*W*H) | 246 * 85 * 76 (mm) |
| Working Temperature | -30℃ to 60℃ |
| Working Humidity | 10% to 90% |
| Net Weight | 0.50kg |
| Gross Weight | 0.64kg |
| Camera | 5MP Camera |
| Description | 5MP Motorized Lens Face Detection Bullet IP Camera |
