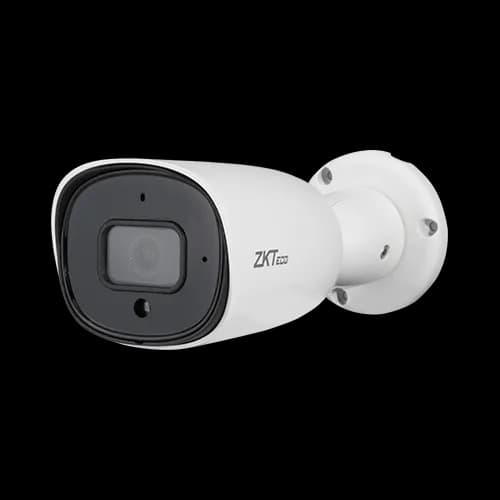

| Model | BS-854N22C-S7 |
|---|
| Image Sensor | 1/3”CMOS Sensor |
|---|
| Effective Pixels | 2560*1440 |
|---|
| Min. Illumination | Color: 0.01Lux@F1.6 (AGC ON) B/W: 0.001Lux@F1.6 (IR ON) |
|---|
| Flash / DDR | 128MB / 512MB |
|---|
| IR LED No. | 2 |
|---|
| IR Distance | 30m |
|---|
| S/N Ratio | >52dB |
|---|
| Lens Type | Fixed |
|---|
| Mount Type | Board-in |
|---|
| Focal Length | 3.6mm |
|---|
| Aperture | F1.6 |
|---|
| FOV | 90° |
|---|
| Optical Zoom | N/A |
|---|
| Compression | H.265, H.264 |
|---|
| Resolution | 4MP (2560 x 1440) / 3MP(2304 x 1296) / 1080P (1920 x 1080) / 1.3MP (1280 x 960) / 720P (1280 x 720) |
|---|
| Bitrate Control | CBR / VBR |
|---|
| Bitrate | 1792Kbps ~ 6Mbps |
|---|
| Multi-Streaming | Main Stream: 4MP@20fps / 3MP@25fps / 1080P@25fps / 960P@25fps / 720P@25fpsSub Stream: D1@25fps / VGA@25fps /CIF@25fpsThird Stream: N/A |
|---|
| Motion Detection | Support |
|---|
| Digital Zoom | Support |
|---|
| Audio Compression | G.711u |
|---|
| Privacy Mask | 4 areas |
|---|
| WDR | DWDR |
|---|
| Day / Night | Support |
|---|
| White Balance | Support |
|---|
| Defog | N/A |
|---|
| Noise Reduction | 2D / 3D DNR |
|---|
| Mirror / Flip | Support |
|---|
| Corridor Mode | Support |
|---|
| HLC | Support |
|---|
| BLC | Support |
|---|
| ROI | 4 areas |
|---|
| Anti-flicker | N/A |
|---|
| Intelligent Video | N/A |
|---|
| Face Templates | N/A |
|---|
| Face Detected Per Frame | N/A |
|---|
| Detected Face Size | N/A |
|---|
| Face Quality Filtering | N/A |
|---|
| Detection Area | N/A |
|---|
| Capture Response | N/A |
|---|
| Protocol | TCP/IP, UDP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IPv4, SSL/TLS |
|---|
| Interoperability | ONVIF Profile S, SDK, API |
|---|
| Max. Online Users | 3 |
|---|
| Web Browser | IE / Firefox / Chrome / Safar |
|---|
| Management Software (VMS) | AntarVis 2.0ZKBioSecurity IVSZKBioAccess IVS |
|---|
| Operation System | Windows |
|---|
| Mobile APP | AntarView Pro |
|---|
| P2P Cloud Service | Support |
|---|
| Ethernet | 1*RJ-45 port (10/100Mbps) |
|---|
| Audio I/O | N/A |
|---|
| Alarm I/O | N/A |
|---|
| RS485 | N/A |
|---|
| Reset Button | N/A |
|---|
| Micro-SD Slot | N/A |
|---|
| ANR | N/A |
|---|
| USB | N/A |
|---|
| Power Supply | PoE (IEEE802.3af ), DC 12V±10% |
|---|
| Power Consumption | <3W |
|---|
| Dimensions | 171 * 75 * 66 (mm) |
|---|
| Ingress Protection Rating | IP67 |
|---|
| Operating Temperature | -30°C ~ 60°C |
|---|
| Operating Humidity | 10% ~ 90% |
|---|
| Net Weight | 0.36kg |
|---|
| Gross Weight | 0.50kg |
|---|
