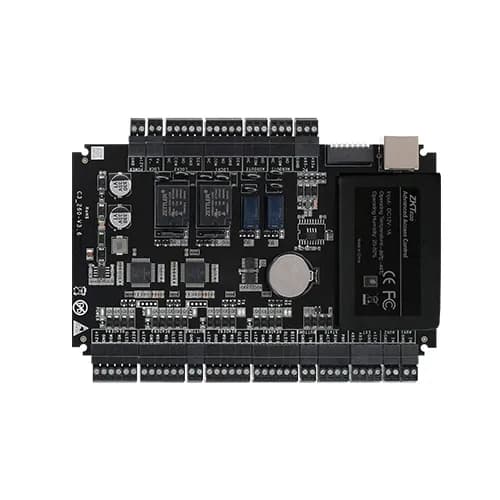

C3-200 PLUS
Qté en stockQté par boîte
Spécifications
| Operating System | Linux OS |
|---|---|
| Hardware | CPU: Single Core @ 1.0GHz RAM: 128MB ROM: 256MB |
| Authentication Method | Card / Password / QR Code |
| Access Point Capacity | 2 Access Points |
| Reader Capacity | 4 × RS-485 Readers (ZKTeco RS-485 / OSDP) 4 × 26/34/66-bit Wiegand Readers |
| IO Expansion Board Capacity | Up to 8 × EX0808 (RS-485 Connection) |
| User Capacity | 100,000 Users |
| Card Capacity | 100,000 Cards (1:N) |
| QR Code Capacity | 100,000 (Static QR Code / Dynamic QR Code) |
| Transaction Capacity | 500,000 Records |
| Number of Inputs | 2 × Exit Button 2 × Door Status 2 × AUX Inputs or 64 Inputs with 8 × EX0808 Expansion Boards |
| Number of Outputs | 2 × Form-C Relay Locks 2 × Form-C AUX Relays or 64 Outputs with 8 × EX0808 Expansion Boards |
| Max. Card Length | Supports up to 66-bit Card Length |
| QR Code Support | QR Code, PDF417, Data Matrix, MicroPDF417, Aztec scanning in third-party development projects. Dynamic QR Codes supported through ZKBio CVAccess Mobile Application. |
| Communication | TCP/IP ×1 RS-485 (ZKTeco RS-485 / OSDP) ×1 Wiegand Input ×4 USB Type-A ×1 (USB Drive Only) AUX Inputs ×2 AUX Outputs ×2 Electric Locks ×2 Door Sensors ×2 Exit Buttons ×2 Alarm Outputs ×2 |
| Standard Functions | Web Server, Up to 14-digit User ID, Access Levels, Access Groups, Holidays, Anti-passback, Anti-tailgating, Linkage, Global Linkage, Multiple Verification Methods |
| Access Control Interface | Wiegand (Card Reader) RS-485 (RS-485 Card Reader / QR Code Reader) |
| Power Supply | 9.6V – 14.4V DC |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 20% – 80% RH (Non-condensing) |
| Dimensions (L × W × H) | 175 × 99 × 19.3 mm |
| Gross Weight | 0.296 kg |
| Net Weight | 0.190 kg |
| Supported Software | ZKBio CVAccess |
| Installation | Wall Mount (Metal Enclosure Optional) |
| Optional Enclosure | Size: 350 × 90 × 300 mm Material: SPCC Steel Power Supply: 110–240V AC Input, 12V 4A + 1A DC Output Backup Battery Space Reserved Recommended Battery Size: 151 × 94 × 65 mm Gross Weight: 3.35 kg |
