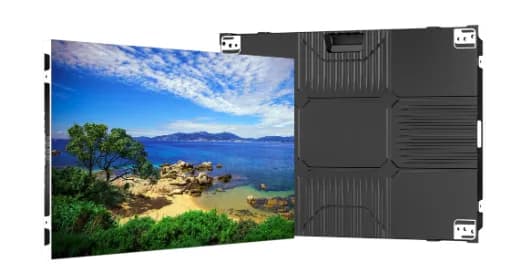

DG01-A1P25
Qté en stockQté par boîte
Spécifications
| Model | DG01-A1P25 |
|---|---|
| Modules Component | 3 × 2 |
| Dimensions (W × H × D) | 640 × 480 × 65 mm |
| Resolution | 256 × 128 |
| Display Area | 0.3072 m² |
| Weight | 8.6 kg |
| Cabinet Material | Die-cast aluminum |
| Maintenance Method | Front maintenance |
| Protection Level | Front IP5X / Rear IP30 |
| Pixel Pitch | 2.5 mm |
| Pixel Density | 160,000 dots/m² |
| LED Encapsulation | SMD2121 |
| Module Size | 320 × 160 × 14.7 mm |
| Module Resolution | 128 × 64 |
| Input Voltage | 4.2 ~ 4.5V DC |
| Maximum Current | ≤ 4A |
| Signal Interface | HUB75 (dual data) |
| Module Power | ≤ 18W |
| Brightness | ≥ 800 cd/m² |
| Brightness Uniformity | > 0.95 |
| Viewing Angle (H/V) | 160° ±10 / 140° ±10 |
| Best Viewing Distance | ≥ 7.5m |
| Service Life | ≥ 100,000 hours |
| Operating Temperature | -20°C ~ 40°C |
| Operating Humidity | 10% ~ 65% RH (non-condensing) |
