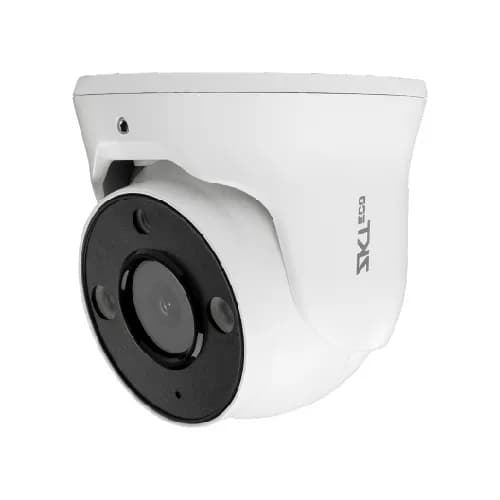

| Model | ES-855P12T-S8-C-MI-S |
|---|
| Image Sensor | 1/2.7” 5MP CMOS |
|---|
| Max.Resolution | 2592(H) * 1944(V) |
|---|
| ROM | 128MB |
|---|
| RAM | 256MB |
|---|
| Scanning System | Progressive Scan |
|---|
| Electronic Shutter Speed | 1/5 s to 1/100,000 s |
|---|
| Min. Illumination | 0.0001Lux@F1.0 (AGC on, Color) |
|---|
| S/N Ratio | >52dB |
|---|
| White Light Range | 20 m |
|---|
| Illuminator On/Off Control | Auto / Manual |
|---|
| Illuminator Number | 2 * White Light LED |
|---|
| Smart IR | N/A |
|---|
| Angle Adjustment for Installation | Pan: 0° ~ 360°Tilt: 0° ~ 90°Rotation: 0° ~ 360° |
|---|
| TV System | PAL / NTSC |
|---|
| Image Settings | Trigger mode, Brightness, Contrast, Saturation, Hue, Sharpness, AGC, White balance, Gamma, Backlight mode, adjustable by platform software or web browser |
|---|
| Software Reset Default | Support |
|---|
| General Function | Heartbeat, Mirror, Privacy mask, Log, Password reset |
|---|
| Lens Type | Fixed Lens |
|---|
| Lens Mount | M12 |
|---|
| Mount Type | Board-in |
|---|
| Focal Length | 3.6mm |
|---|
| Max. Aperture | F1.0 |
|---|
| Optical Zoom | N/A |
|---|
| Field of View | FOV: 100°Horizontal: 88°Vertical: 45° Diagonal: 105° |
|---|
| Iris Type | Fixed |
|---|
| Close Focus Distance | 1.5 m |
|---|
| DORI Distance | Lens: 3.6mmDetect: 50 mObserve: 19.2 mRecognize: 10 mIdentify: 4.3 m |
|---|
| Video Compression | H.265 / H.264 |
|---|
| Resolution | 5MP (2592*1944) / 4MP (2560*1440) / 3MP (2304*1296) / 1080P (1920*1080) / 1.3MP (1280*960) / 720P (1280*720) / D1 (704*576) / VGA (640*480) / Q720 (640*360) |
|---|
| Main Stream | 50Hz (PAL): 25fps (2592*1944,1920*1080, 1280*960, 1280*720)60Hz (NTSC): 30fps (2592*1944,1920*1080, 1280*960, 1280*720) |
|---|
| Sub Stream | 50Hz (PAL): 25fps (704*576, 640*480, 640*360)60Hz (NTSC): 30fps (704*576, 640*480, 640*360) |
|---|
| Third Stream | N/A |
|---|
| Video Stream Capability | Dual streams |
|---|
| Bit Rate Control | CBR / VBR |
|---|
| Video Bit Rate | H.264: 192kbps ~ 8MbpsH.265: 224Kbps ~ 8Mbps |
|---|
| Day / Night | Auto (ICR) / Color / B&W |
|---|
| BLC | Support |
|---|
| HLC | Support |
|---|
| WDR | True WDR |
|---|
| Scene Self-adaptation | Support |
|---|
| White Balance | Auto, Custom, Locked, Incandescent lamp, Warm light, Natural light, Fluorescent lamp |
|---|
| Gain Control | Low, Mid low, Mid, Mid high, High |
|---|
| Noise Reduction | 2D / 3D NR |
|---|
| Motion Detection | Smart / Ordinary (4 areas) |
|---|
| Region of Interest (ROI) | Support (4 areas, Level 1~6) |
|---|
| Defog | N/A |
|---|
| Mirror | Support |
|---|
| Image Rotation | 0° / 90° / 180° / 270° / Horizontal / Vertical |
|---|
| Privacy Masking | 4 areas |
|---|
| Corridor Mode | Support |
|---|
| Digital Zoom | Support |
|---|
| Anti-flicker | N/A |
|---|
| Built-in Mic S/N Ratio | Support |
|---|
| Audio Compression | G.711ulaw |
|---|
| Environment Noise Filtering | Support |
|---|
| Audio Sampling Rate | 8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz |
|---|
| Audio Bit Rate | 64 Kbps (G.711ulaw) |
|---|
| IVA (Perimeter Protection) | Target Count, Object Lost / Left, Line Crossing, Area detection, Smart Motion Detection (human and vehicle targets classification) |
|---|
| Intelligent Search | Embedded intelligent classification algorithm based on computer vision technology |
|---|
| Intelligent Video | Support fast retrieval by human & vehicle targets classification, playback and backup |
|---|
| Face Templates | N/A |
|---|
| Face Quality Filtering | N/A |
|---|
| Face Detected Per Frame | N/A |
|---|
| Detection Area | N/A |
|---|
| Detected Face Size | N/A |
|---|
| Capture Response | N/A |
|---|
| Basic Alarm Event | Network disconnection, IP conflict, Illegal access, Motion detection, Video tampering, External alarm |
|---|
| Smart Alarm Event | Target Count, Object Lost/Left, Line Crossing, Area detection, Smart Motion Detection (human and vehicle targets classification) |
|---|
| Alarm Linkage Actions | Upload to memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email |
|---|
| Simultaneous Live View | Up to 15 channels |
|---|
| Network | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|
| SDK and API | Support SDK, API and ONVIF |
|---|
| Cyber Security | Video encryption; firmware encryption; configuration encryption; account lockout; security logs; IP filtering; trusted boot; trusted execution; trusted upgrade; password protection; complicated password; basic and digest authentication for HTTP / HTTPS; TLS; IP address filter; Security Audit Log |
|---|
| Protocol | TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, IPv4, UDP, SSL / TLS, PPPoE, SNMP, WebSocket |
|---|
| Interoperability | ONVIF Profile S/T/G |
|---|
| User / Host | Up to 256 users can be added. 3 user levels: admin, operator and guest |
|---|
| Network Storage | FTP |
|---|
| Web Browser | IE / Edge / Firefox / Chrome / Safari |
|---|
| Management Software (VMS) | AntarVis 2.0 / ZKBioSecurity IVS / ZKBioAccess IVS / ZKBio CVSecurity / ZKBio CVAccess |
|---|
| Mobile Application | AntarView Pro (iOS & Android) |
|---|
| On-Board Storage | Micro-SD card slot (support max. 256GB) |
|---|
| Operation System | Windows |
|---|
| P2P Cloud Service | Support |
|---|
| Audio Input / Output | N/A |
|---|
| Alarm Input | N/A |
|---|
| Alarm Output | N/A |
|---|
| Reset Button | Support |
|---|
| ANR | Support |
|---|
| Dimensions | Φ97.00 x 88.50 (mm) |
|---|
| USB | N/A |
|---|
| RS485 | N/A |
|---|
| Power Supply | PoE (IEEE802.3af,Class 3), DC 12V±10% reverse polarity protection |
|---|
| Power Consumption | Basic ≦3W (12 VDC); 4.5 W (PoE) |
|---|
| Power Interface | Ø 5.5 mm coaxial power plug |
|---|
| Casing Material | Aluminium Alloy |
|---|
| Net Weight | 0.42kg |
|---|
| Gross Weight | 0.60kg |
|---|
| Operating Conditions | –30 °C to +60 °C (–22 °F to +140 °F) / Humidity 95% or less (non-condensing) |
|---|
| Storage Conditions | –30 °C to +60 °C (–22 °F to +140 °F) / Humidity 95% or less (non-condensing) |
|---|
| Protection Grade | IP67 |
|---|
| Certifications | ISO9001; ISO14001; CE; FCC |
|---|
