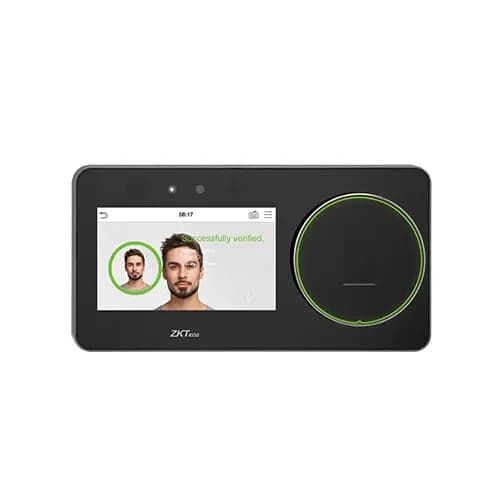

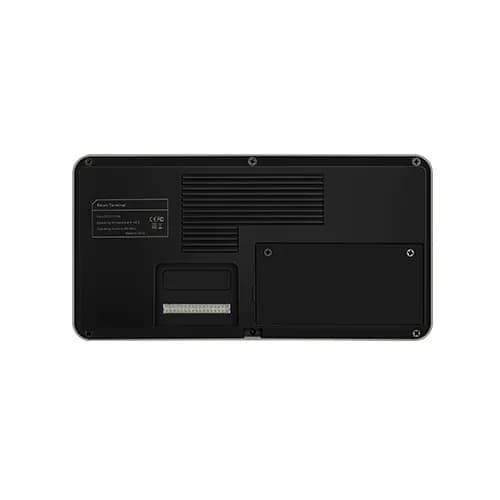

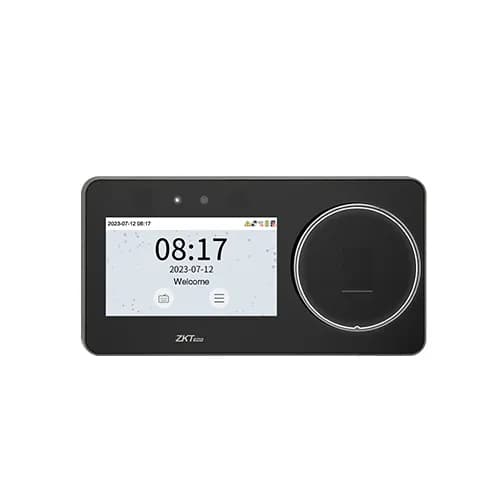

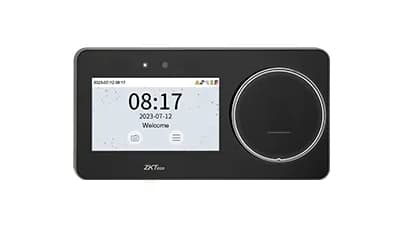

| Model | FaceDepot 4A |
|---|
| Display | 4.3"@ TFT Color Touch LED Screen (480*800) |
|---|
| Camera | Binocular Camera @ 2MP WDR |
|---|
| Operation System | Linux |
|---|
| Hardware | CPU: Quad Core@1.2GHzRAM: 1GB; ROM: 8GBSpeaker: 8 ohm @1 W Supplement Light: NoFingerprint Sensor: In-Glass Fingerprint |
|---|
| Biometric Authentications | Fingerprint / Face / Card / Password (Virtual Keypad) |
|---|
| Fingerprint Capacity | 10,000 (1:N) (Standard) |
|---|
| User Capacity | 10,000 (1:N) (Standard) |
|---|
| Face Capacity | 10,000 (1:N) (Standard) |
|---|
| Transaction Capacity | 100,000 (1:N) (Optional for Capacity Expansion: 200,000 ) |
|---|
| Max. User Password Length | 8 Digits |
|---|
| Biometric Verification Speed | less than 0.35 second (Facial Recognition) less than 0.5 second (Fingerprint Recognition) |
|---|
| Touchless Biometric Recognition Distance | 30cm to 200cm @ Face |
|---|
| False Acceptance Rate (FAR) % | FAR ≤ 0.01% (Facial Recognition)FAR≤0.0001% (Fingerprint) |
|---|
| False Rejection Rate (FRR) % | FRR ≤ 0.02% (Facial Recognition)FRR≤0.01% (Fingerprint) |
|---|
| Biometric Algorithm | ZKFace V6.0ZKFingerprint V10.0 |
|---|
| Card Type | ID Card@125 kHz (Optional)HID Prox@125 kHz (Optional) IC Card@13.56 MHz (Optional)Optional Multi-Tech Module:Module1: ID & IC & DESFire EV1/EV2; (125 kHz & 13.56 MHz Dual Frequency) |
|---|
| Communication | TCP / IP*1Wi-Fi (IEEE802.11a / b / g / n / ac) @ 2.4 GHz / 5 GHzWiegand (Input & Output)*1RS485: ZKTeco RS485*1USB: Type A (USB Drive Only)*1Aux Inputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm Output*1 |
|---|
| Mobile Communication | LTE FDD: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B18 / B19 / B20 / B25 / B26 / B28LTE TDD: B38 / B39 / B40 / B41UMTS: B1 / B2 / B4 / B5 / B6 / B8 / B19 GSM: B2 / B3 / B5 / B8 |
|---|
| Standard Functions | WorkCode, ADMS, DST, T9 Keyboard (Input), Photo Capture, Event Photo Capture, 14-digit User ID, Schedule Bell, Record Query, Tamper Switch Alarm, Photo ID, Multiple Verification Methods, External Printer, HTTPs / SSH Backend Access, 12V Output |
|---|
| Optional Functions | Wi-Fi, 4G, Backup Battery, PoE |
|---|
| Power Supply | DC 12V 3APoE: IEEE 802.3afBackup Battery |
|---|
| Backup Battery (Coming soon) | 2000 mAh (Lithium Battery)Max. Operating Hours: 2 Hours Max. Standby Hours: 2 Hours Charging Time: 2.5 to 3 Hours |
|---|
| Operating Temperature | 0°C to 45°C |
|---|
| Operating Humidity | 20% to 80% RH (Non-condensing) |
|---|
| Dimensions | 193.00 * 100.00 * 32.40 mm (L*W*H) |
|---|
| Gross Weight | 0.447 Kg |
|---|
| Net Weight | 0.402 Kg |
|---|
| Supported Software | ZKBioTime / ZKBio CVAccess (T&A Module) |
|---|
| Installation | Wall-mount |
|---|
| Certifications | ISO14001, ISO9001, CE, FCC, RoHS |
|---|
