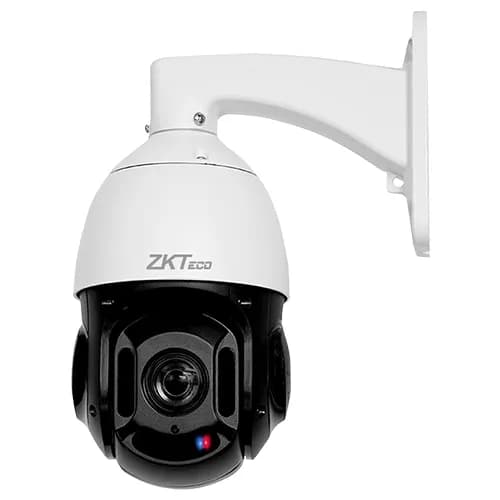

| Model | PS-852TC20C-AD |
|---|
| Image Sensor | 1/2.8” 2 MP STARVIS CMOS Sensor |
|---|
| Max. Resolution | 1920 (H) × 1080 (V) |
|---|
| ROM | 128 MB |
|---|
| RAM | 256 MB |
|---|
| Scanning System | Progressive Scan |
|---|
| Electronic Shutter Speed | 1/5 s to1/100,000 s |
|---|
| Min. Illumination | 0.001 Lux @ F1.6 to F3.5 (AGC on, Color)0 lux (IR on, B & W) |
|---|
| S/N Ratio | > 52 dB |
|---|
| IR Range | 120 m |
|---|
| White Light Range | 30 m |
|---|
| Illuminator On/Off Control | Auto / Manual |
|---|
| Illuminator Number | 4 × IR LED, 3 × White Light LED |
|---|
| Strobe Light | 1 × Red / Blue Strobe LED |
|---|
| Smart IR | Support |
|---|
| Angle Adjustment for Installation | Pan: 0° to 360°Tilt: 0° to 90°Rotation: 0° to 360° |
|---|
| TV System | PAL / NTSC |
|---|
| Image Settings | Trigger mode, Brightness, Contrast, Saturation, Hue, Sharpness, AGC, White balance, Gamma, Backlight mode, adjustable by platform software or web browser |
|---|
| Software Reset Default | Support |
|---|
| General Function | Heartbeat, Mirror, Privacy mask, Log, Password reset |
|---|
| Lens Type | Motorized vari-focal |
|---|
| Lens Mount | M32 |
|---|
| Mount Type | Board-in |
|---|
| Focal Length | 4.7 to 94 mm |
|---|
| Max. Aperture | F1.6 to F3.5 |
|---|
| Field of View | 64° (W) to 3.2° (T) |
|---|
| Iris Type | Fixed |
|---|
| Close Focus Distance | 2 m |
|---|
| DORI Distance | Lens: Wide / TelephotoDetect: 450 m / 1060.0 mObserve: 205 m / 420.4 mRecognize: 99 m / 210.0 mIdentify: 50 m / 105.8 m |
|---|
| Pan / Tilt Range | Pan: 0° to 360°, Tilt: -10° to 90° |
|---|
| Pan Speed | 0.1° to 200°/s |
|---|
| Tilt Speed | 0.1° to 180°/s |
|---|
| Preset | 225 |
|---|
| Preset Speed | 10-Level selection |
|---|
| Pattern Group | 4 |
|---|
| Auto Mode | Support Idle motion, Power-on auto detection, Rotation speed changes with optical zoom proportionally |
|---|
| Protocol | TCP / IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, IPv4, UDP, SSL / TLS, PPPoE, SNMP, WebSocket |
|---|
| Tour Group | 8 |
|---|
| A-B Scan Group | N/A |
|---|
| Resolution | 2 MP (1920 × 1080) / 1.3 MP (1280 × 960) / 720 P (1280 × 720) |
|---|
| Video Compression | H.265 / H.264 |
|---|
| Max Video Frame Rate | Main Stream: 50 Hz (PAL): 25 fps (1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz (NTSC): 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)Sub Stream: 50 Hz (PAL): 25 fps (704 × 576, 640 × 480, 640 × 360); 60 Hz (NTSC): 30 fps (704 × 576, 640 × 480, 640 × 360)Third Stream: 50 Hz (PAL): 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576); 60 Hz (NTSC): 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576) |
|---|
| Video Stream Capability | Triple streams |
|---|
| Bit Rate Control | CBR / VBR |
|---|
| Video Bit Rate | H.264: 896 Kbps to 6 MbpsH.265: 1024 Kbps to 6 Mbps |
|---|
| Day / Night | Auto (ICR) / Color / B & W |
|---|
| BLC | Support |
|---|
| HLC | Support |
|---|
| WDR | True WDR |
|---|
| Scene Self-adaptation | Support |
|---|
| White Balance | Auto, Custom, Locked, Incandescent lamp, Warm light, Natural light, Fluorescent lamp |
|---|
| Gain Control | Low, Mid low, Mid, Mid high, High |
|---|
| Noise Reduction | 2D / 3D NR |
|---|
| Motion Detection | Smart / Ordinary (4 areas) |
|---|
| Region of Interest (ROI) | Support (4 areas, Level 1 to 6) |
|---|
| Defog | N/A |
|---|
| Mirror | Support |
|---|
| Image Rotation | 0° / 180° / Horizontal / Vertical |
|---|
| Privacy Masking | 4 areas |
|---|
| Corridor Mode | Support |
|---|
| Digital Zoom | Support |
|---|
| Anti-flicker | Support |
|---|
| Built-in MIC | Support |
|---|
| Built-in LoudSpeaker | Support |
|---|
| Environment Noise Filtering | Support |
|---|
| Audio Compression | G.711u law |
|---|
| Audio Sampling Rate | 8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz |
|---|
| Audio Bit Rate | 64 Kbps (G.711ulaw) |
|---|
| IVA (Perimeter Protection) | Target Counting, Object Lost / Left, Line Crossing, Area Detection, Smart Motion Detection (human and vehicle targets classification) |
|---|
| Intelligent Search | Support fast retrieval by human and vehicle targets classification |
|---|
| Intelligent Video | Support fast retrieval by human and vehicle targets classification, playback and backup |
|---|
| Intelligent Tracking | Support auto tracking by human and vehicle targets classification |
|---|
| Face Templates | N/A |
|---|
| Face Quality Filtering | N/A |
|---|
| Face Detected Per Frame | N/A |
|---|
| Detection Area | N/A |
|---|
| Detected Face Size | N/A |
|---|
| Capture Response | N/A |
|---|
| Basic Alarm Event | SD card error, Network disconnection, IP conflict, Illegal access, Motion detection, Video tampering, External alarm |
|---|
| Smart Alarm Event | Target Counting, Object Lost / Left, Line Crossing, Area Detection, Smart Motion Detection |
|---|
| Alarm Linkage Actions | Upload to memory card / FTP, notify surveillance center, trigger recording, trigger capture, send email |
|---|
| Simultaneous Live View | Up to 10 channels |
|---|
| Network | 1 RJ45 10 M / 100 M self-adaptive Ethernet port |
|---|
| SDK and API | Support SDK, API and ONVIF |
|---|
| Cyber Security | Video encryption; firmware encryption; configuration encryption; account lockout; security logs; IP filtering; trusted boot; trusted execution; trusted upgrade; password protection complicated password; basic and digest authentication for HTTP / HTTPS; TLS; IP address filter; Security Audit Log |
|---|
| Interoperability | ONVIF Profile S / T / G |
|---|
| User / Host | Up to 256 users can be added. 3 user levels: admin, operator and guest |
|---|
| Network Storage | FTP, Micro SD card, auto network replenishment (ANR) |
|---|
| Web Browser | IE / Edge / Firefox / Chrome / Safari |
|---|
| Management Software | AntarVis 2.0 / ZKBioSecurity IVS / ZKBioAccess IVS / ZKBio CVSecurity / ZKBio CVAccess |
|---|
| Mobile Application | AntarView Pro+ (iOS & Android) |
|---|
| On-Board Storage | Micro-SD card slot (support max. 256 GB) |
|---|
| Operation System | Windows, MacOS |
|---|
| P2P Cloud Service | Support |
|---|
| Audio Input | N/A |
|---|
| Audio Output | N/A |
|---|
| Alarm Input | N/A |
|---|
| Alarm Output | N/A |
|---|
| Reset Button | Support |
|---|
| ANR | Support |
|---|
| RS485 | N/A |
|---|
| USB | N/A |
|---|
| Power Supply | PoE (IEEE802.3at, 30 W), DC 12 V ± 10% 3 A reverse polarity protection |
|---|
| Power Consumption | Basic 22 W (12 VDC); 30 W (PoE) |
|---|
| Power Interface | Ø 5.5 mm coaxial power plug |
|---|
| Casing Material | Aluminium Alloy + Plastics |
|---|
| Dimensions | 280.6 × 128.1 × 207.4 (mm) |
|---|
| Net Weight | 2.1 kg |
|---|
| Gross Weight | 2.62 kg |
|---|
| Operating Conditions | –30 °C to +60 °C (–22 °F to +140 °F) / Humidity 95% or less (non-condensing) |
|---|
| Storage Conditions | –30 °C to +60 °C (–22 °F to +140 °F) / Humidity 95% or less (non-condensing) |
|---|
| Protection Rating | IP66 |
|---|
| Certificates | ISO9001, ISO14001, CE, FCC |
|---|
