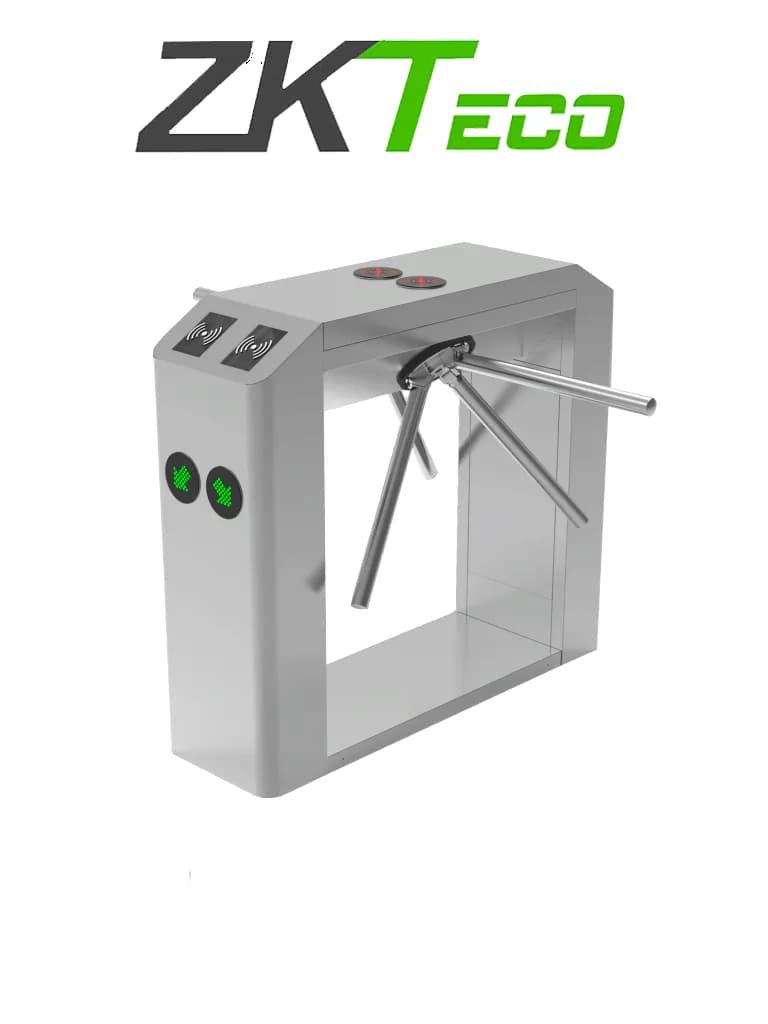

TS2200 PRO
Spécifications
| Power supply | AC 110V/220V, 50/60Hz |
|---|---|
| Power consumption: | |
| Operating | 40W |
| Standby | 10W |
| 🌡️ Environmental Conditions | |
| Operating temperature | –28°C to 60°C |
| Operating humidity | 5% to 80% RH (non-condensing) |
| Working environment | Indoor / Outdoor (semi-covered) |
| 🚶 Throughput | |
| Flow rate | up to 25 persons per minute |
| Lane width | 550 mm |
| Arm length | 500 mm |
| MCBF (Mean Cycles Between Failures) | 2 million |
| 📏 Dimensions | |
| Footprint | 1120 × 350 mm |
| Overall dimensions (L×W×H) | 1337 × 1130 × 900 mm |
| Package dimensions | 470 × 1220 × 1100 mm |
| ⚖️ Weight | |
| Net weight | 65 kg |
| Gross weight (with packaging) | 75 kg |
| 🔧 Construction | |
| Cabinet material | Stainless steel SUS304 |
| Top cover material | SUS304 |
| Barrier arm material | SUS304 |
| Barrier movement | Rotating |
| 💡 Features | |
| Emergency mode | Arm drops automatically or manually in case of power failure |
| LED indicator | Integrated pictogram |
| Control system | Dry contact input |
