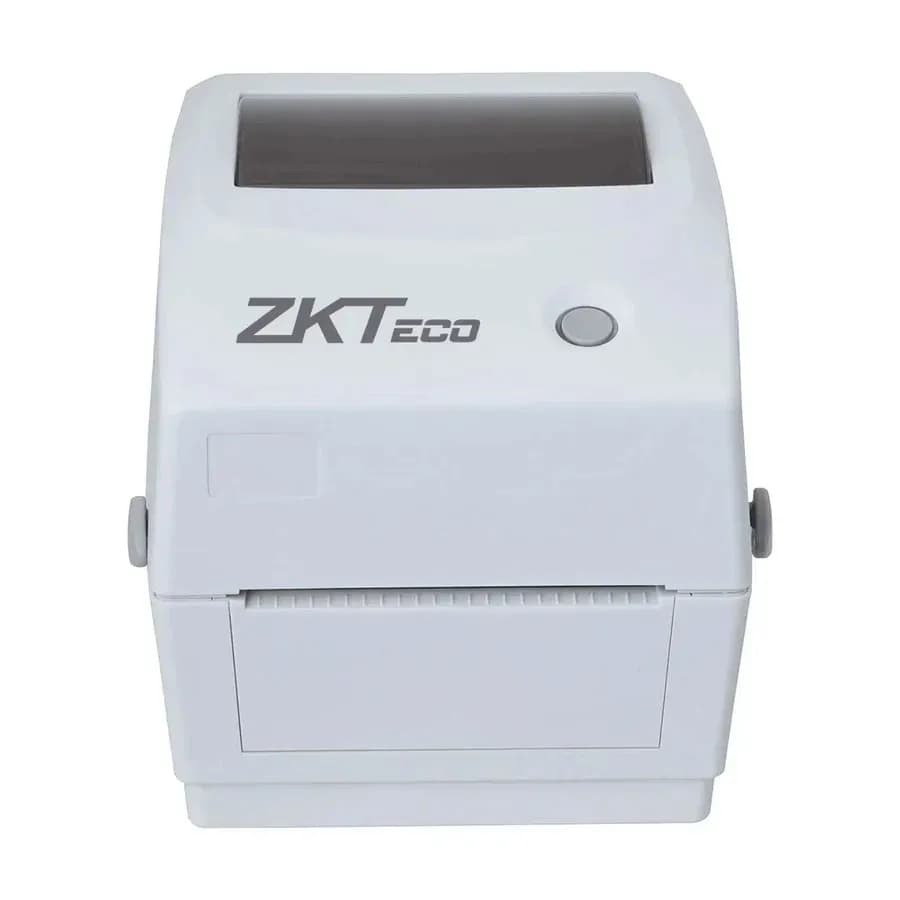

| Specification | ZKP8013 |
|---|
| Brand | ZKTeco |
|---|
| Printing Method | Direct Thermal |
|---|
| Processor | 32-bit |
|---|
| Print Resolution | 203 DPI |
|---|
| Maximum Print Speed | 152 mm/s (6"/s) |
|---|
| Maximum Print Width | 108 mm (4.25") |
|---|
| Maximum Print Length | 1778 mm (70") |
|---|
| Memory | Flash: 8 MB; SDRAM: 8 MB; Expandable up to 4 GB with MicroSD card |
|---|
| Interface | USB |
|---|
| Media Types Supported | Continuous Paper, Gap Paper, Black Mark Paper, Fan-fold Paper, Perforated Paper |
|---|
| Media Width | 20–116 mm (0.78"–4.56") |
|---|
| Media Thickness | 0.06–0.2 mm (0.0023"–0.0079") |
|---|
| Media Core Diameter | 25.4–76.2 mm (1"–3") |
|---|
| Label Length | 10–1778 mm (0.39"–70") |
|---|
| Maximum Paper Roll Diameter | 101 mm (4") |
|---|
| Sensors | Gap Sensor; Cover Open Sensor; Black Mark Sensor |
|---|
| Internal Fonts | 8 Bitmap Alphanumeric Fonts; Windows Fonts Downloadable via Software |
|---|
| 1D Barcodes | Code 39, Code 93, Code 128 UCC, Code 128 Subsets A/B/C, Codabar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2/5 Digits Add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11 |
|---|
| 2D Barcodes | PDF417, MaxiCode, DataMatrix, QR Code, Aztec |
|---|
| Barcode Rotation | 0°, 90°, 180°, 270° |
|---|
| Print Commands | TSPL, EPL, ZPL, DPL |
|---|
| Power Adapter | Input: AC 100–240 V, 50/60 Hz; Output: DC 24 V / 2.5 A |
|---|
| Color | White |
|---|
| Dimensions (L × W × H) | 219 × 189.6 × 178.5 mm |
|---|
| Net Weight | 1.58 kg |
|---|
| Operating Temperature | 5°C to 40°C |
|---|
| Storage Temperature | -40°C to 60°C |
|---|
| Operating Humidity | 25% to 85% RH |
|---|
| Storage Humidity | 10% to 90% RH |
|---|
